- 1/4” mild steel maximum capacity.
- 52” shearing length.
- 15 hp motor runs on 220-volt 3-phase power.

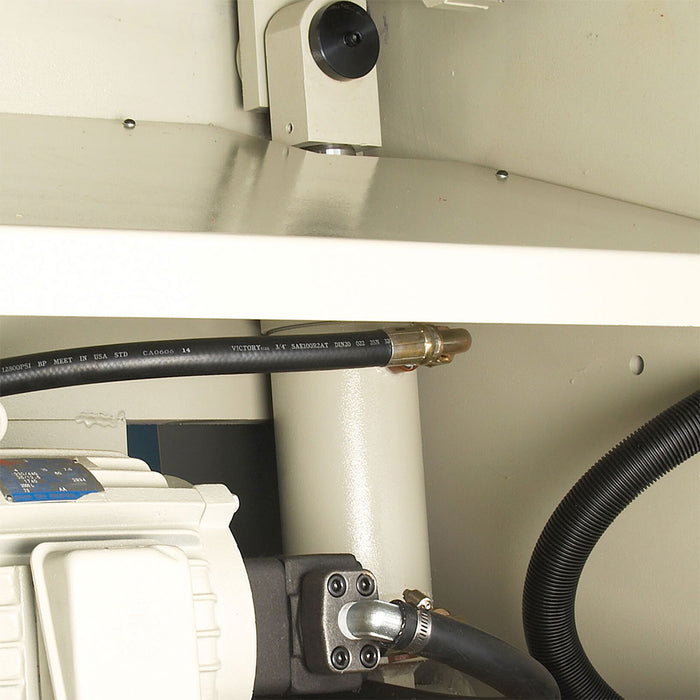

- Industrial-grade hydraulic system can take anything you throw at it.
- Heavy support arms keep your material square to the blade.

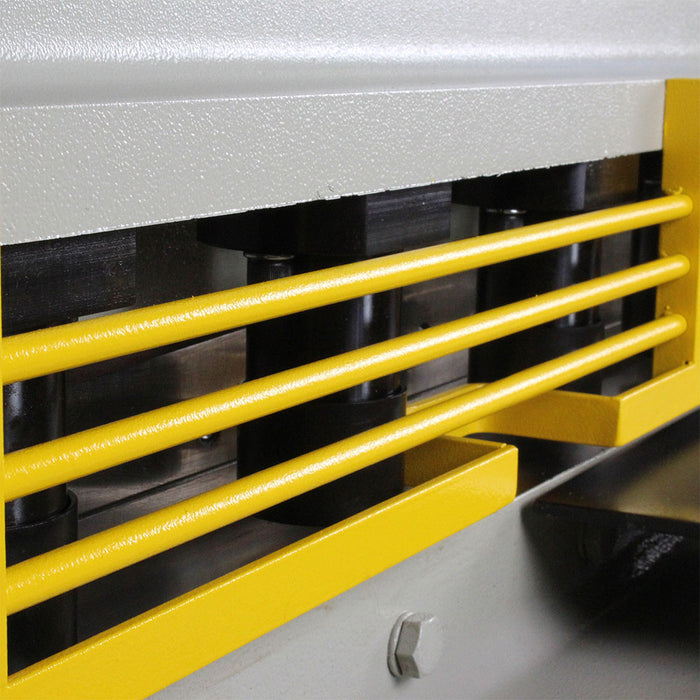

- Easy to operate: just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops.
- Switch between 3 modesas needed:
- Jog mode: Inching the blade down to the material.
- Single cycle mode: One cut for one pedal push.
- Automatic cycling mode: Continuously cutting for production runs.
- Control panel includes rake angle adjustment, jog/run/stop controls, and production counter.
- Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials.

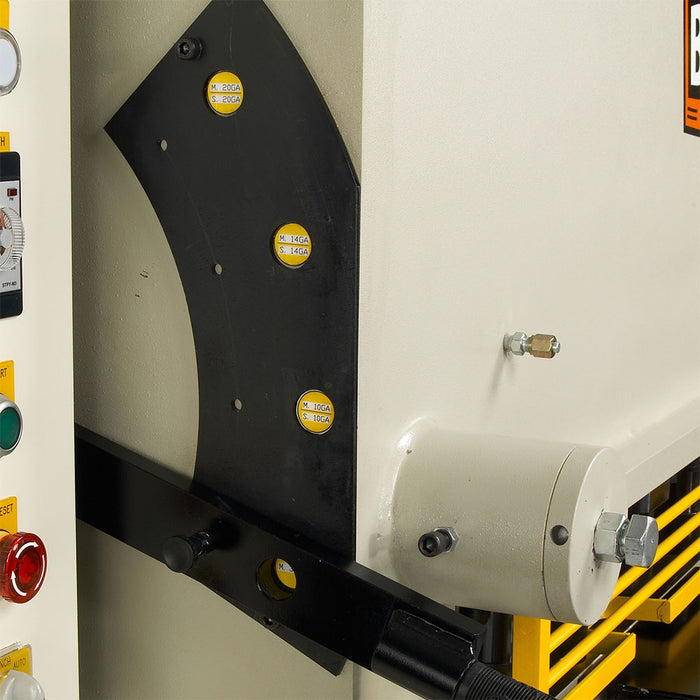

- Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.
- It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.
- Comes standard with high carbon chromium blades.
- 2-sided upper blades and 4-sided lower blades can be flipped and resharpened many times, saving you money.
- Fully welded plate steel frame ensures rigidity and prolongs blade life.

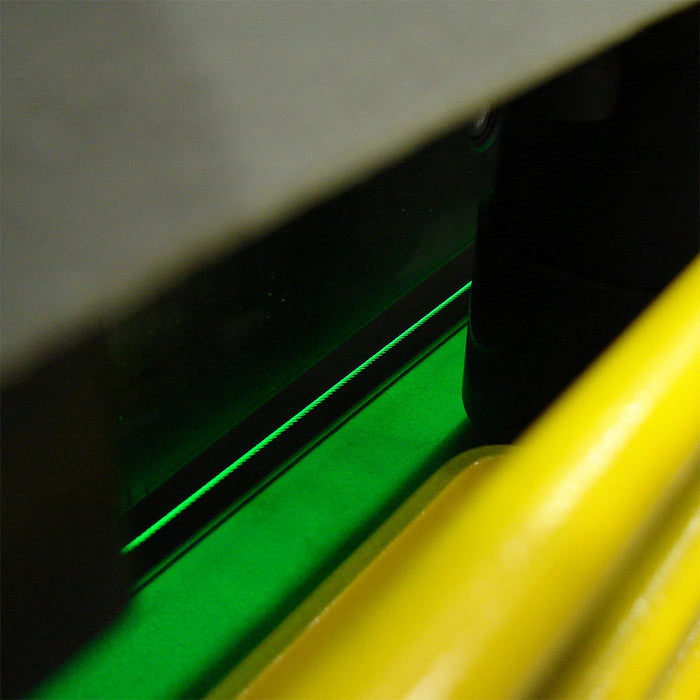

- Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.
- Covered by a 1-year parts warranty.
What's in The Box
- SH-5203-HD - Hydraulic Sheet Metal Shear
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V / 3-phase|
|Blade Rake Angle||.5 to 2.0 degrees|
|Back Gauge Length||23.62"|
|Thickness (SS)||1/4" (7 ga.)|
|Strokes Per Minute||16 – 24|
|Front Gauge Length||39.37"|
|Blade Angle||1/2° – 2° Adjustable|
|Blade Gap Adjustment||Manual, Lever Acuated|
|Minimum Material Thickness||24 ga|
|Shipping Dimensions (Inches)||88 x 54 x 66|
