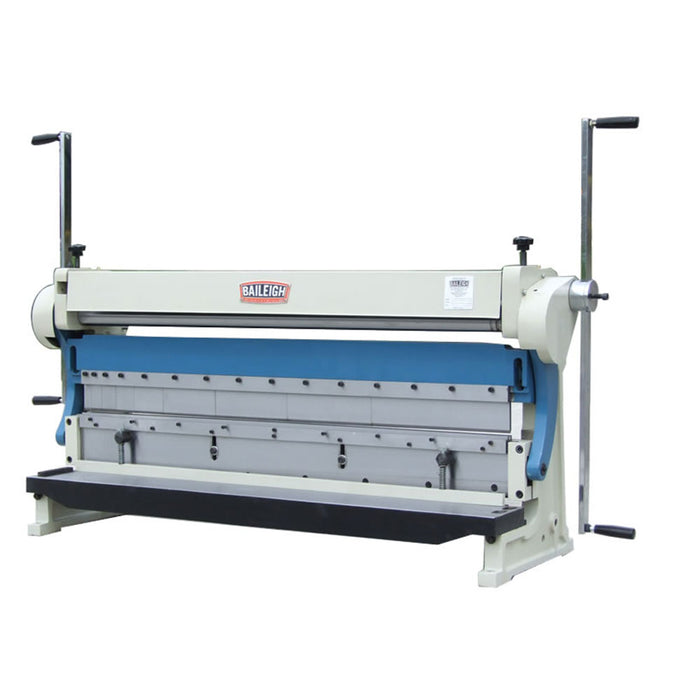

Baileigh 1006972 SBR-5216 52" x 16 Gauge Mild Steel Shear Brake Roll

$4,629.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1006972
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • 52” width lets you roll, bend, and shear 4’ x 8’ sheets.
  • Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
  • 1.70” minimum rolling diameter.

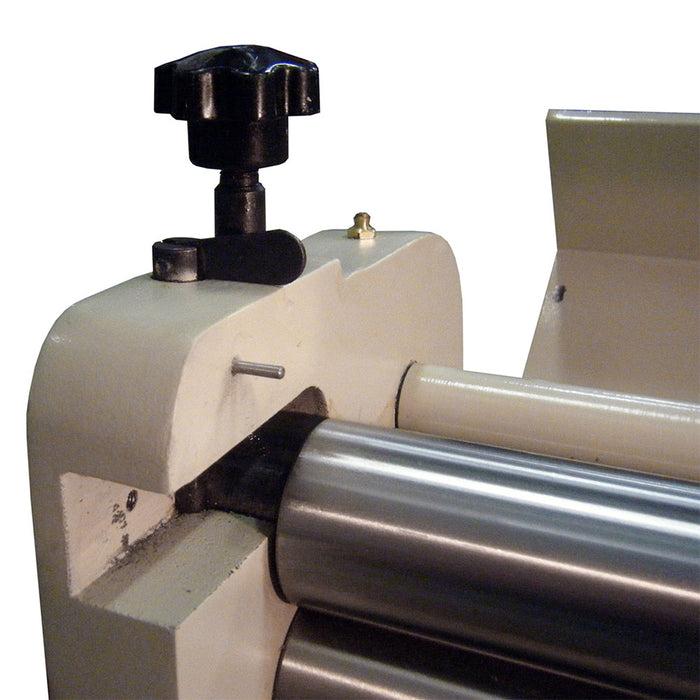

  • Hardened, adjustable back and top rolls can form different thicknesses.

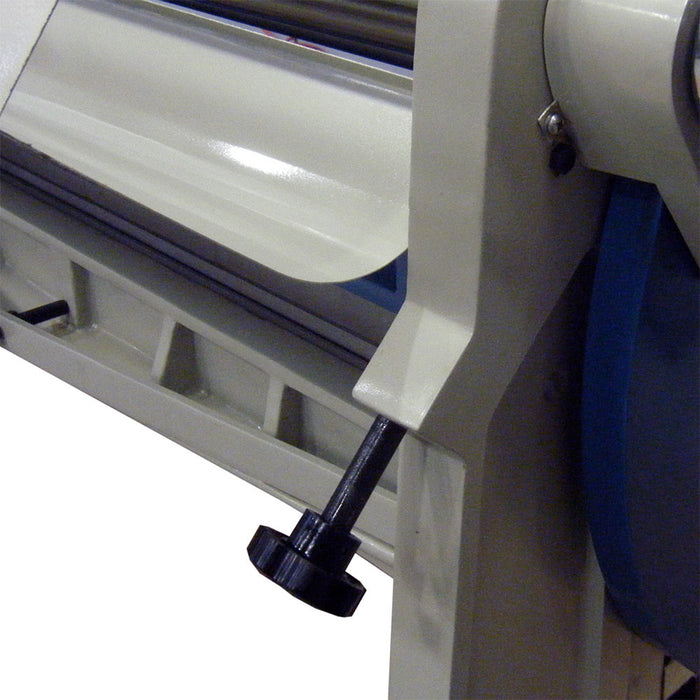

  • Top roll can swing away from the machine for convenient material removal.

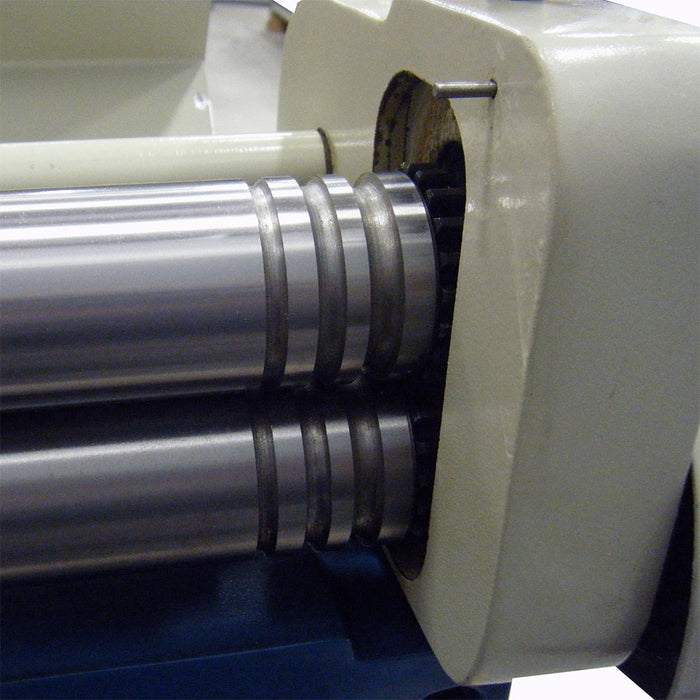

  • 3 grooves on the roll can form wire or round rod.
  • Manual press brake section comes with a fixed bottom V-block die.
  • The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners.
  • 9 movable fingers on the top beam can make many sizes of boxes and pans.
  • Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.

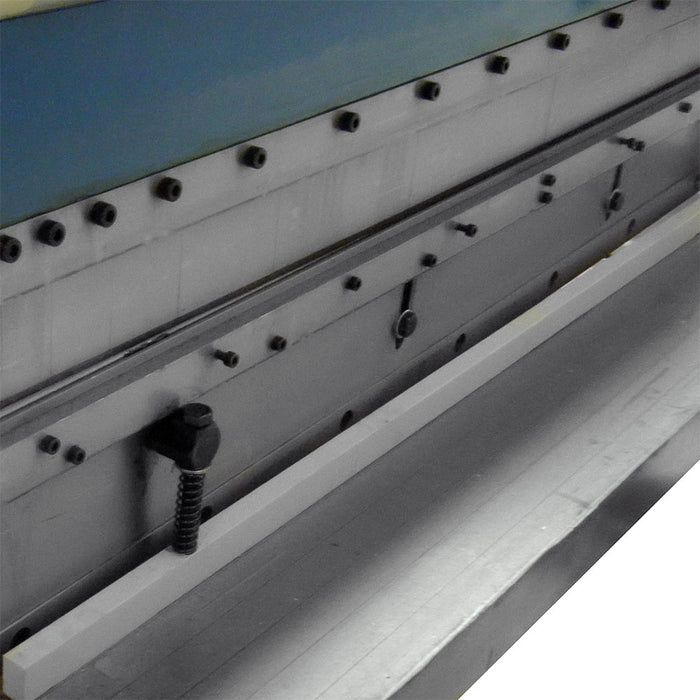

  • Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.
  • You can adjust the blade gap to fit different gauges of sheet metal.
  • Includes a material guide.
  • Hardened, reversible blades stay sharp.
  • Manual back gauge helps you easily produce repeatable parts.
  • Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.
What's in The Box
  • SBR-5216 - Shear Brake Roll
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU SBR-5216
Power Manual
Top Roll Dia. 2.38"
Rolling Capacity 16 ga. (.060”)
Shear Capacity 16 ga. (.060”)
Min. Rolling Dia. 3.57”
Included Accesories Included Accesories
Bed Width 52"
Bending Capacity 16 ga. (.060”)
Max. Bend Angle 90 deg.
Dimensions (Inches) 71 x 24 x 37
Weight 1200 lbs
