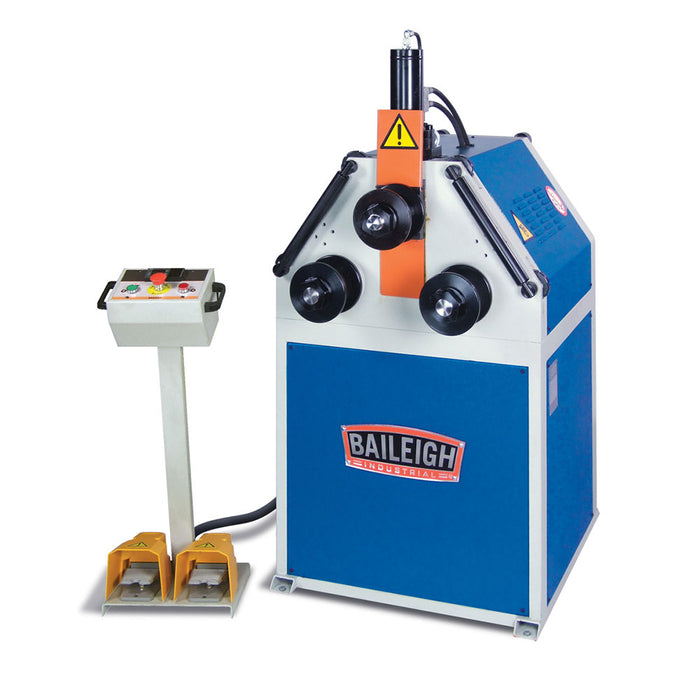

Baileigh 1006859 R-M55H 220V Hydraulic Heavy Duty Profile Bender

$15,479.00 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: BLH-1006859
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • This ring roller bender runs on 220-volt single-phase power.
  • Bends a maximum capacity of 2.75" round tube and 2” schedule 40 pipe.

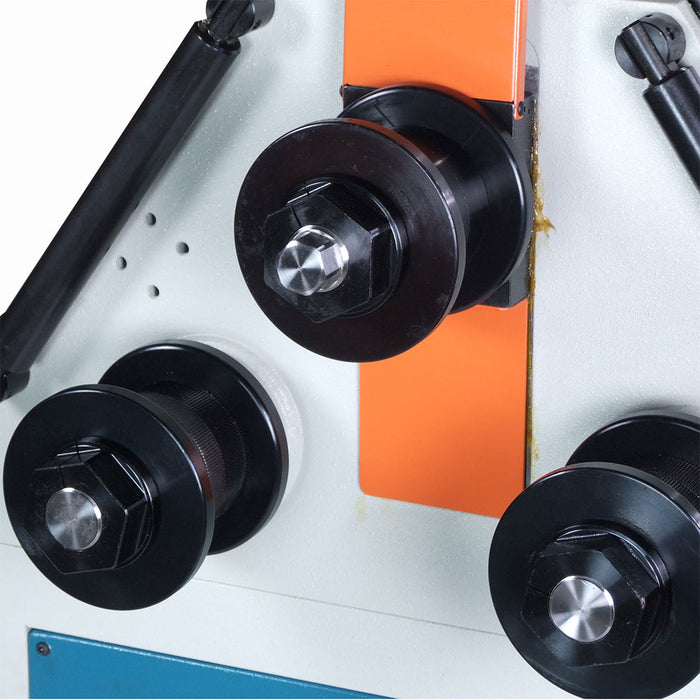

  • Works with 3 rolls: 1 top forming roll and 2 driven bottom rolls.
  • You can operate the R-M55H in 2 positions: vertical, for small rolling projects, and horizontal (on its back) for longer sections of material.
  • Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops.
  • Digital readout tells you the exact position of the top shaft to ensure simple repeatability for production runs.
  • Direct gearbox drive system delivers mighty full torque even when bending at full capacity.
  • Foot pedal control lets you conveniently switch between forward and reverse modes.
  • Variable-speed inverter allows you to adjust the rolling speed to suit you material and project.

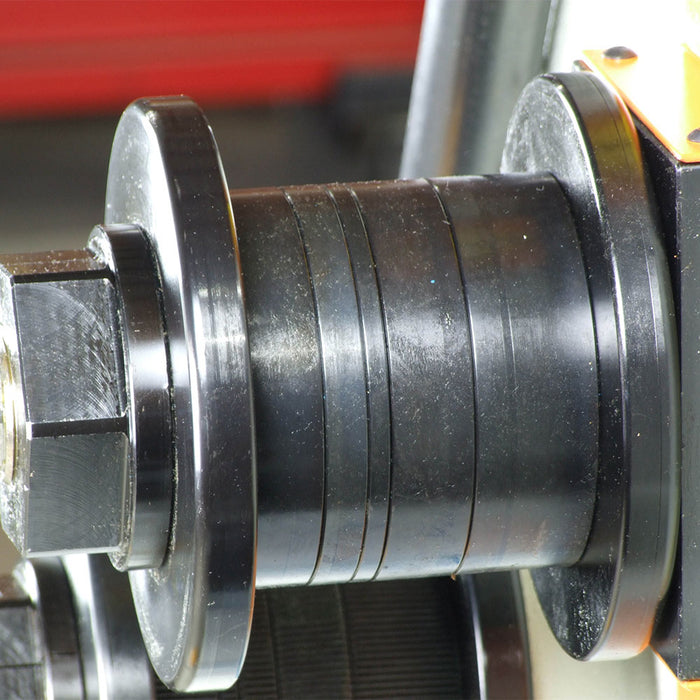

  • Comes standard with roll sets that you can configure to suit many applications.
  • Constructed from heavy steel plate to maintain accuracy and minimize flex.
What's in The Box
  • R-M55H - Profile Bender
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU R-M55H
Power 220V Single Phase

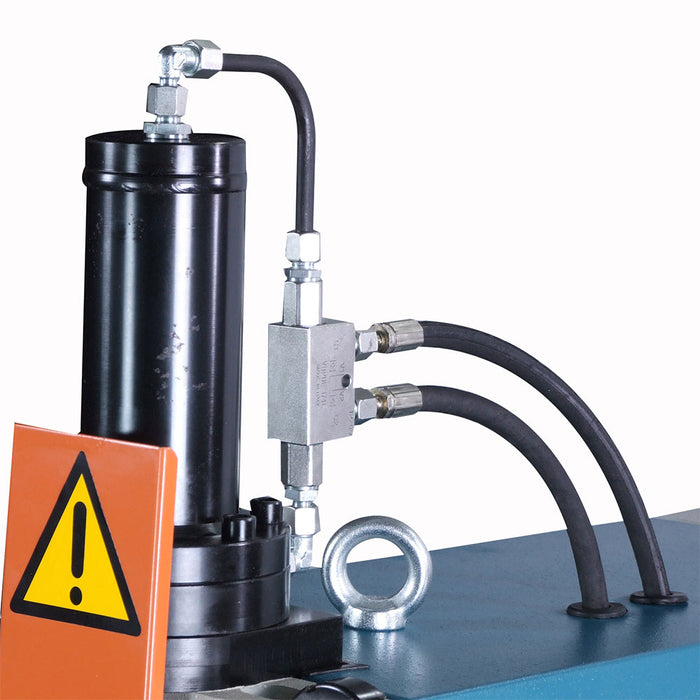

Roll Adjustment Hydraulic
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 40"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.083") / Min. Dia.: 48"
Solid Round Capacity Size: 1.375" / Min. Dia.: 20"
Flat Bar Easy Way Size: 4" (.5") / Min. Dia.: 20"
Flat Bar Hard Way Size: 2.25" (.375") / Min. Dia.: 20"
Angle Iron Capacity Size: 2" (.250") / Min. Dia.: 28"
Shaft Diameter 1.968"
Shaft Center Distance 13.12"
Lower Roll Dia. 5.827"
Pinch Single
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches) 60x44x77
Weight 965 lbs
