Features
- Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
- Maximum capacity of 2.75" round tubing and 2” schedule 40 pipe.

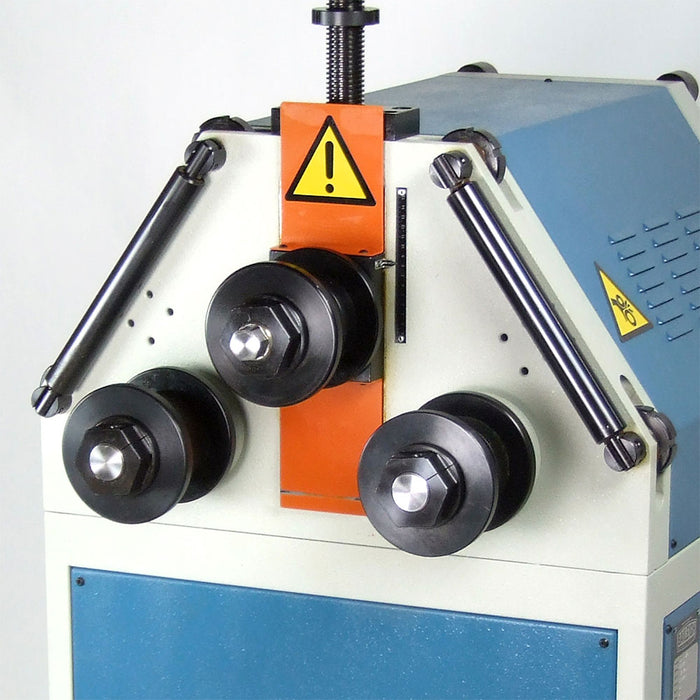

- Manual top-shaft machine with 2 driven rolls (3 rolls total).

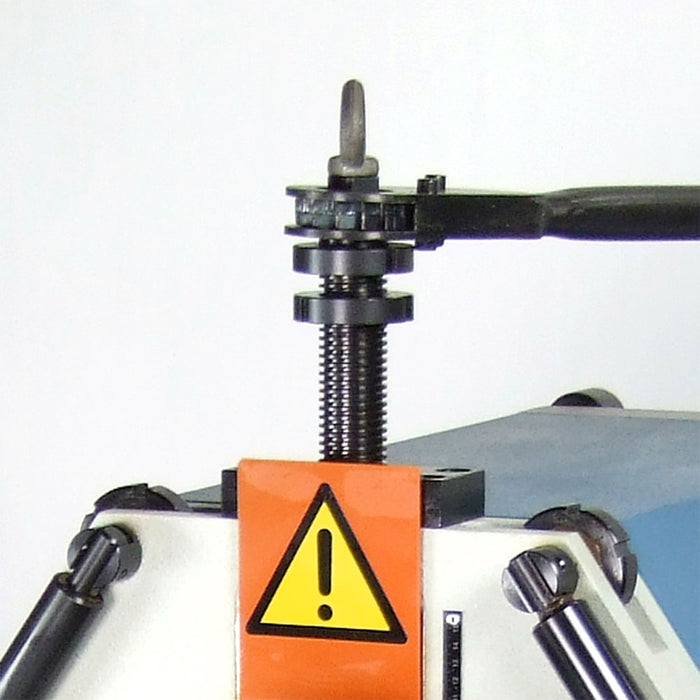

- Large ratchet offers extra leverage for manual control of top roll position.
- You can operate the R-M55 in vertical mode, for small rolling projects, or in horizontal mode, for large rolling projects.
- Variable-speed inverter allows you to finetune the rolling speed for a given material.
- Easy-to-read scale indicates top roll position, helping you easily make repeatable bends for production runs.

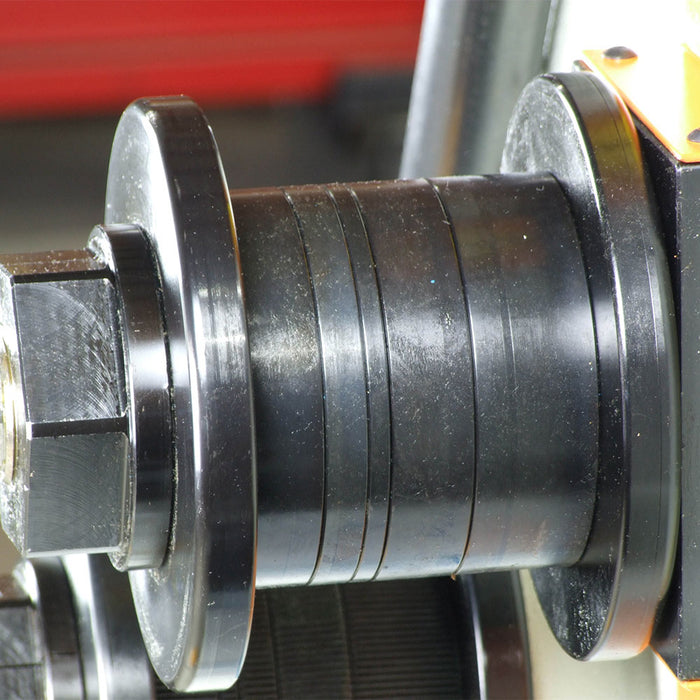

- Includes segment rolls and lateral roll guides to keep material from twisting.

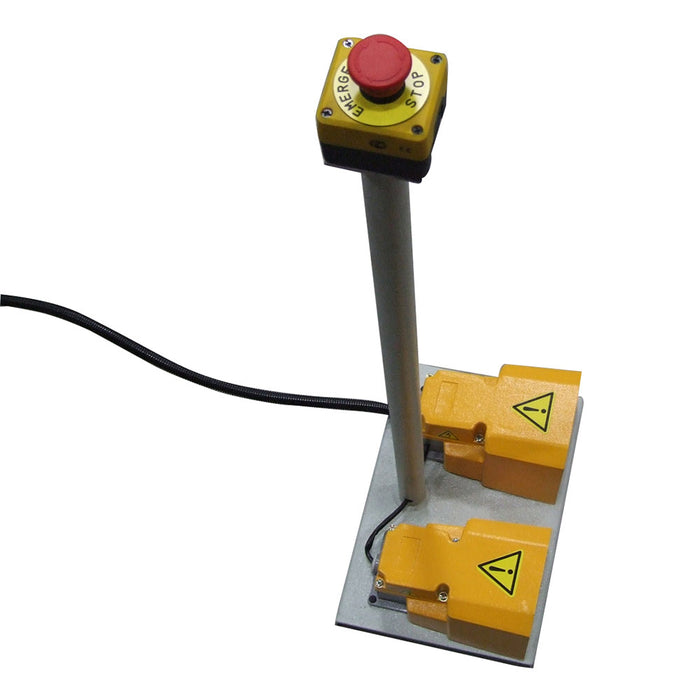

- Foot pedal controls let you conveniently stop and start the bender.
- Accepts optional rolls (available from Baileigh) to bend a variety of profiles like tubing, pipe, angle iron and much more.
What's in The Box
- R-M55 - Ring Roll
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | R-M55 |
| Power | 220V Single Phase |
| Roll Adjustment | Manual |
| Pipe Capacity | Size: 2" (sch. 40) / Min. Dia.: 40" |
| Round Tube Capacity | Size: 2.75" (.083") / Min. Dia.: 60" |
| Square Tube Capacity | Size: 2" (.083") / Min. Dia.: 48" |
| Solid Round Capacity | Size: 1.375" / Min. Dia.: 20" |
| Flat Bar Easy Way | Size: 4" (.5") / Min. Dia.: 20" |
| Flat Bar Hard Way | Size: 2.25" (.375") / Min. Dia.: 20" |
| Angle Iron Capacity | Size: 2" (.250") / Min. Dia.: 28" |
| Shaft Diameter | 1.968" |
| Shaft Center Distance | 13.12" |
| Lower Roll Dia. | 5.827" |
| Pinch | Single |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Dimensions (Inches) | 60 x 44 x 77 |
| Weight | 650 lbs |
