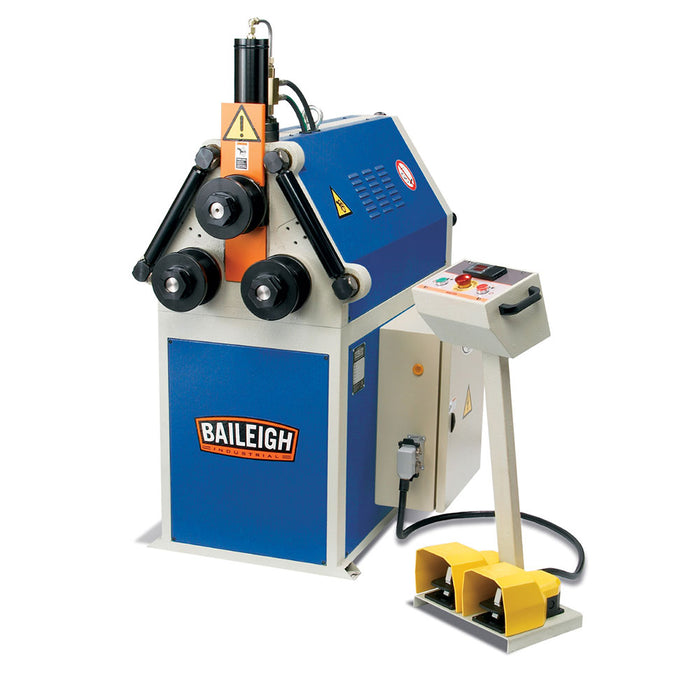

Baileigh 1006835 R-H45 Hydraulic Roll Bender w/ 3 Driven Rolls

$14,859.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1006835
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
  • Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

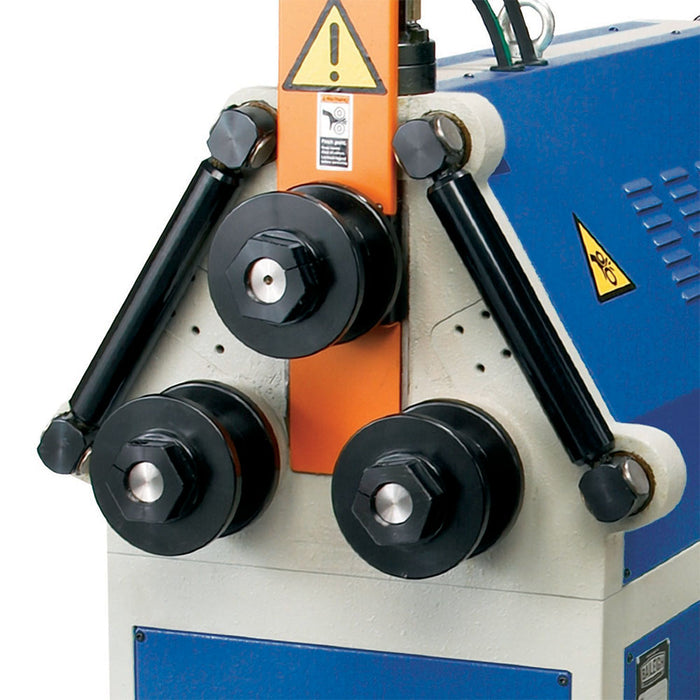

  • All 3 rolls turn on industrial motor and transmission.

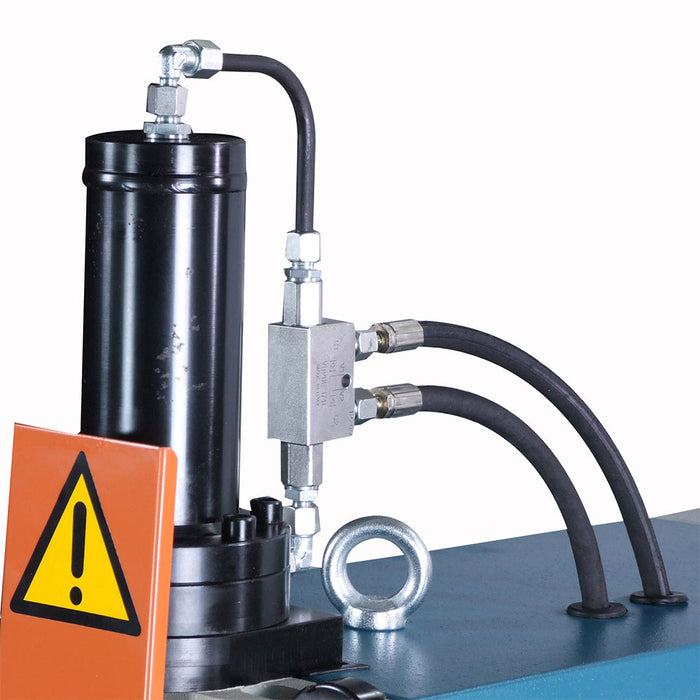

  • Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.
  • Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
  • Siemens inverter drive enables soft start-ups to prolong motor life.
  • Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
  • You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
  • Fully-welded steel plate frame adds strength to the machine and minimizes flex.
What's in The Box
  • R-H45 - Hydraulic Roll Bender
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU R-H45
Power 220V Single Phase
Roll Adjustment Hydraulic
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 48"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.120") / Min. Dia.: 51"
Solid Round Capacity Size: 1.5" / Min. Dia. 28"
Flat Bar Easy Way Size: 4" (.75") / Min. Dia. 28"
Flat Bar Hard Way Size: 3.25" (.375")/ Min. Dia.: 32"
Angle Iron Capacity Size: 2" (.250")/ Min. Dia.: 36"
Shaft Diameter 1.772"
Shaft Center Distance Lower Rolls 9.562"
Lower Roll Dia. 5.827"
Pinch Single
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches) 60 x 44 x 77
Weight 1000 lbs
