Baileigh 1006554 PR-603-4 4 Roll Plate Roll w/ 6' x 1/4" Capacity
by Baileigh
$55,309.00
+ Free Shipping
Condition: New
SKU: BLH-1006554
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Rolls up to 1/4” mild steel in 6-foot lengths.
- Robust 4 hp motor runs on 220-volt 3-phase power.
- Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
- Direct linear piston movement for the lateral and forming rolls delivers even more power.
- Industrial 1.5 hp hydraulic motor moves the lateral rolls.
- 3 digital readouts give accurate roll locations for easy repeatability.

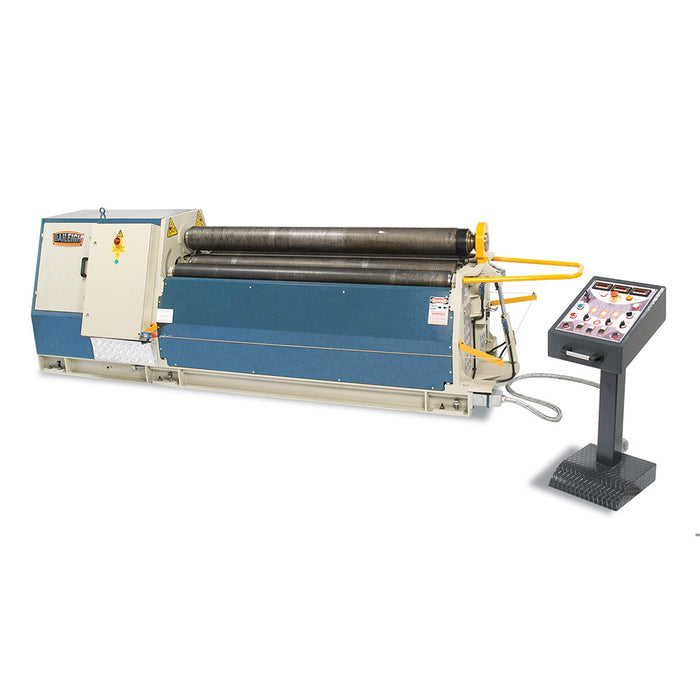

- Operator control pedestal lets you conveniently manage all movements of the machine.
- Welded steel plate frame keeps the machine rigid and helps prevent flex.
- Covered by a 1-year parts warranty.
What's in The Box
- PR-603-4 - Four Roll Plate Roll
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | PR-603-4 |
| Power | 220V / 3-phase |
| Motor | 4 hp |
| Working Length | 78.74" |
| Forming Width | 80" |
| Driven Rolls | 2 |
| Roll Speed | 16 fpm. (5 mpm) |
| Upper Roll Dia. | 7" |
| Roll Adjustment Back | Hydraulic |
| Roll Diameter | 7.4" |
| Side Roll Dia | 5.9" |
| Roll Length | 80.70" |
| Minimum Forming Dia | 10.6" |
| Included Accesories | Included Accesories |
| Dimensions (Inches) | 138 x 44 x 52 |
| Weight | 7700 lbs |
