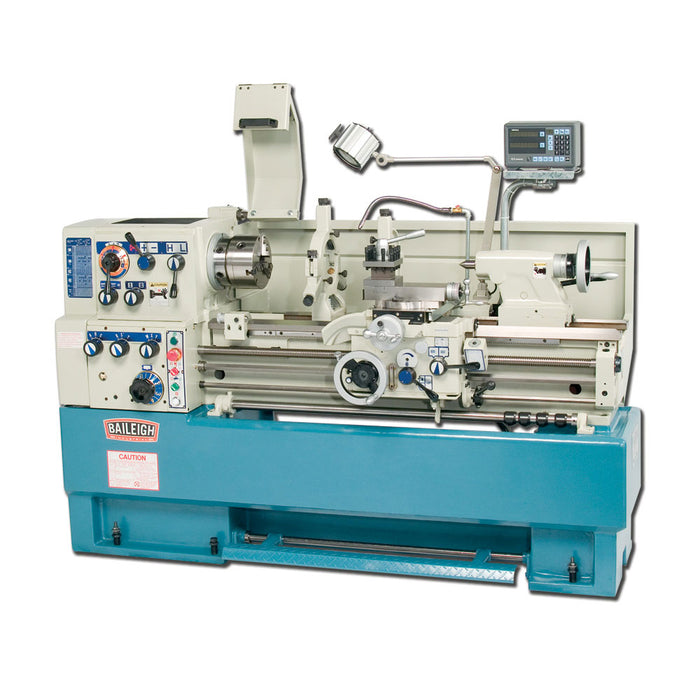

Baileigh 1006140 PL-1640 220V 7.5HP Precision Lathe w/ Cast Iron Base

$26,999.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1006140
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • 12 speeds from 30 to 2,000 rpm.
  • 7.5 hp motor runs on 220-volt 3-phase power.
  • No assembly required.
  • Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts.
  • Precision ground and hardened ways will withstand years of use in any metalworking shop.
  • ?” square indexing tool post.
  • Collar system lets you set stops for repeat parts.
  • This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
  • Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market.
  • Comes standard with:
  • 3-jaw chuck.
  • Headstock chuck guard with automatic safety switch.
  • Steady rest and follow rest.
  • Emergency foot brake.
  • Flood coolant system (with backsplash guard) to prolong machine life.
  • Halogen work light.
  • Covered by a 1-year parts warranty.
What's in The Box
  • PL-1640 - Precision Lathe
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PL-1640
Power 220V / 3-phase
Speed 30 – 2000 rpm
Spindle Bore 2.0625"
Threads Diametrical Qty Speed 32 / 4–32 D.P.
Threads Imperial Qty Speed 40 / 2–56 T.P.I.
Threads Metric Qty Speed 53 / .4–14 mm pitch
Threads Module Qty Speed 44 / .4–7 M.P.
Spindle Taper Sleeve Morse #4
Spindle Taper Nose Morse #6
Tailstock Quill Dia 2.125"
Tailstock Quill Taper Morse #4
Tailstock Quill Travel 4.75"
Compound Rest Width 4.33"
Center Height 7.086"
Compound Travel 4.75"
Bed Height 12.20"
Bed Length 17157
Bed Width 11.81"
Longitudinal Feeds Metric Qty Speed 40 / .032 – .640 mm / rev.
Main Motor 7.5 hp
Longitudinal Feeds Imperial Qty Speed 40 / .0012" – .0252" / rev.
Lead Screw Diameter 1.25"
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing In Gap Length 6.125"
Max. Swing Over Bed 16"
Max. Swing Over Cross Slide 9.45"
Max. Swing In Gap Dia 23.42"
Cross Feeds Imperial Qty Speed 40 / .0006" – .0126" / rev.
Cross Feeds Metric Qty Speed 40 / .015 – .320 mm / rev.
Cross Slide Travel 9"
Cross Slide Width 7.08"
Cutting Tool Max Section .625" x .625"
Distance Between Centers 40"
Feed Rod .708 dia.
Shipping Dimensions (Inches) 90x37x81
Weight 3940 lbs
