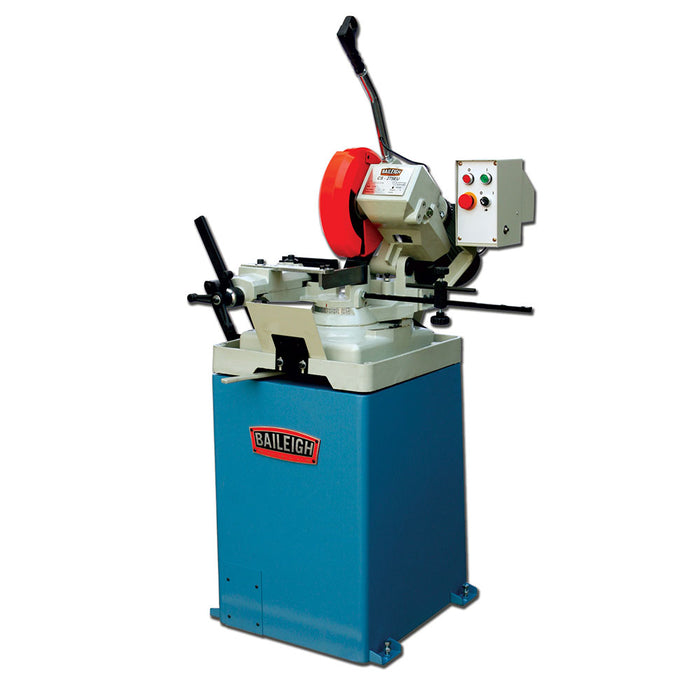

Baileigh 1002434 CS-275EU 110V 1HP 11" Manual Cold Saw w/ Cast Iron Base
by Baileigh
$2,979.00
+ Free Shipping
Condition: New
SKU: BLH-1002434
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Accepts an 11” blade (included).
- 3.25” round tube capacity at 90°, big enough for just about any chassis project.
- Miters up to 45° left and right.
- Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar.
- Blade turns at 54 rpm.
- Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere.

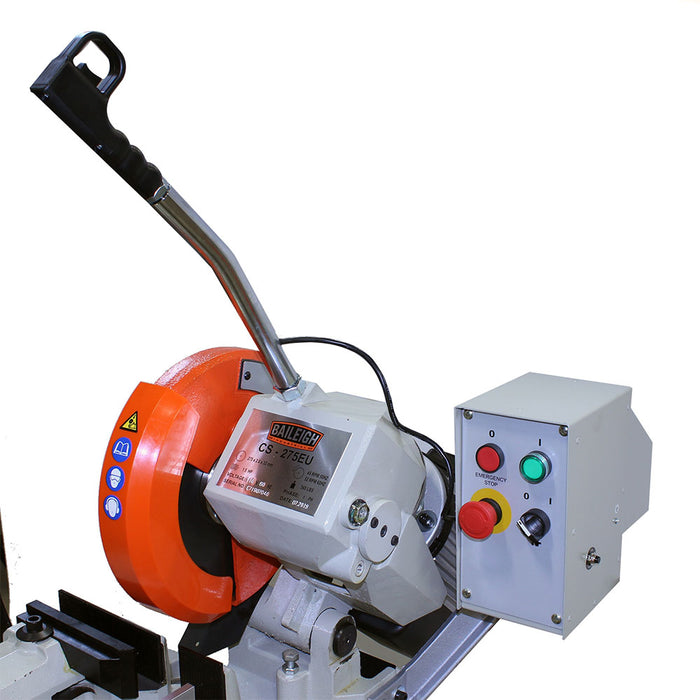

- Fully cast iron head will deliver clean cuts for many years.

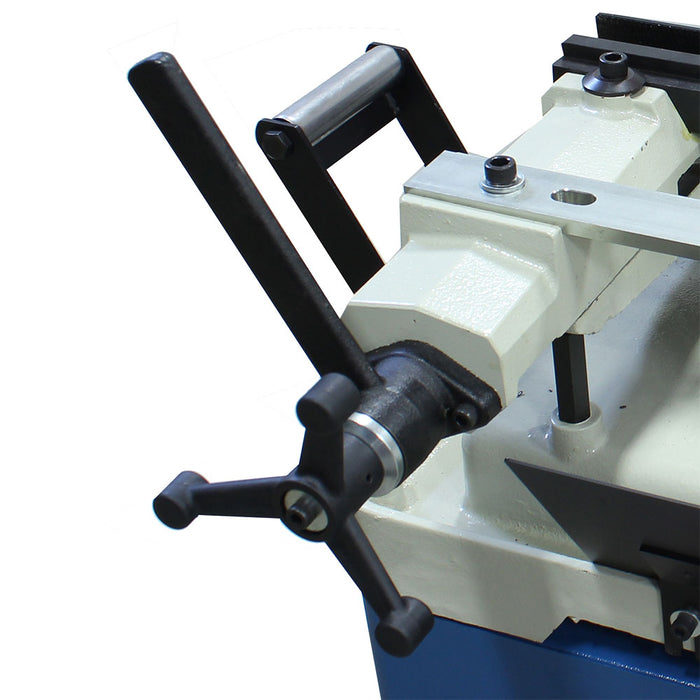

- European-style vise with a cam lock allows for fast material loading and unloading.
- Vise supports the material on opposite sides of the blade to maintain high cut quality.
- Material stop rod lets you conveniently set up repeatable cuts for production runs.
- Solid cast iron saw base keeps the machine stable, so that the blade cuts accurately.
- Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height.

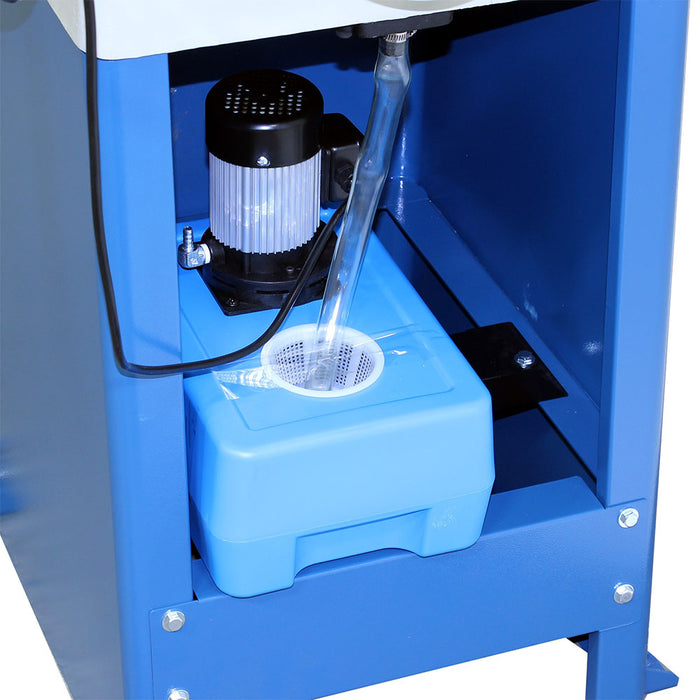

- Flood coolant system helps the operator cut material more easily and prolongs blade and machine life.
What's in The Box
- CS-275EU - Manual ColdSaw
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | CS-275EU |
| Power | 110V |
| Max. Blade Diameter | 11" |
| Operation | Manual |
| Head Miter | 45° Left / 45° Right |
| Round Solid at 45° | 3.25" |
| Square Tube at 45° | 2.2" x 2.2" |
| Round Tube at 45° | 3.25" |
| Rectangle Tube at 45° | 2.2" x 2" |
| Round Solid at 90° | 3.25" |
| Rectangle Tube at 90° | 3.1" x 2" |
| Square Tube at 90° | 2.5" x 2.5" |
| Round Tube at 90° | 3.25" |
| Coolant System | Yes |
| Slotting Capable | Yes |
| Vice Style | Single Action with Cam Lock |
| Max. Vice Opening | 4" |
| Head Style | Pivot |
| Arbor Size | 1.26" |
| Included Accesories | Included Accesories |
| Working Height | 38" |
| Blade Size | 11" |
| Blade Speed | 54 (rpm) |
| Shipping Dimensions (Inches) | 48x31x43 |
| Weight | 460 lbs |
