Baileigh 1001517 BS-330M 220V Metal Cutting Band Saw w/ Cast Iron Head
Shipping & Return PoliciesSpend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
People Who Bought This Also Bought
- Maximum capacity of 13” OD round at 90°.
- Accepts a large 1.25” blade.

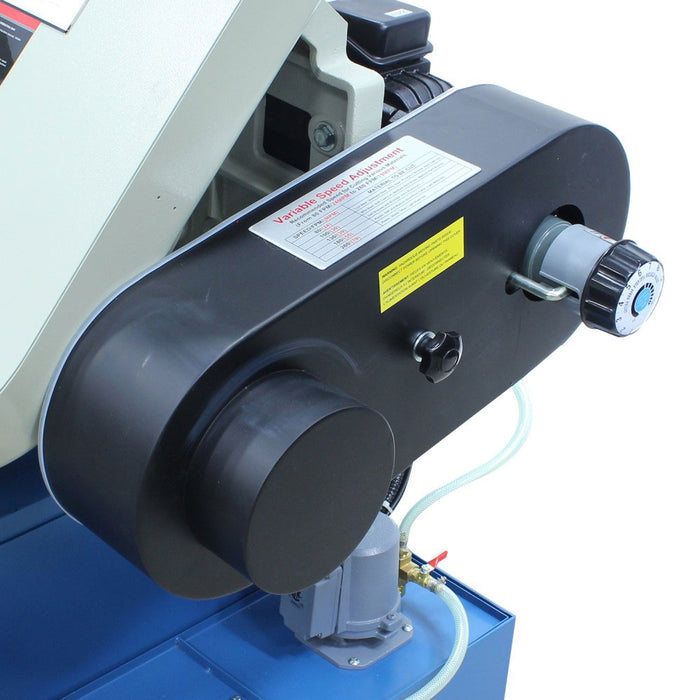

- Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
- 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.

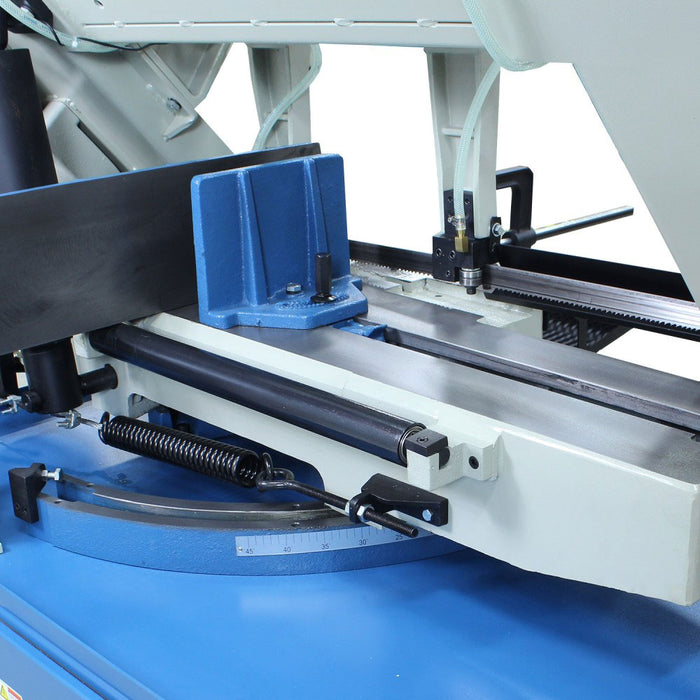

- Saw head miters up to 45°.
- Heavy cast iron head and bow reduce vibrations while cutting.
- Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.

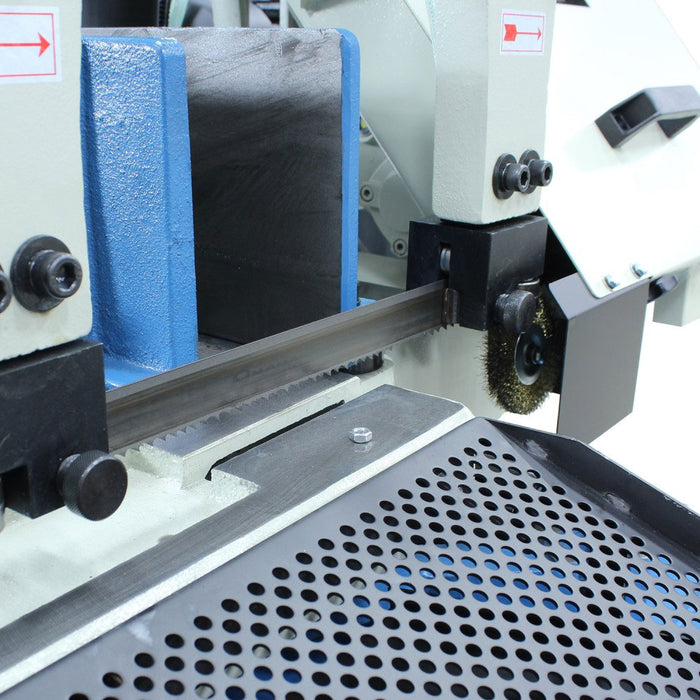

- Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
- Laser guide helps you see where your cut will be and line it up.
- Durable steel flywheels drive the blade.

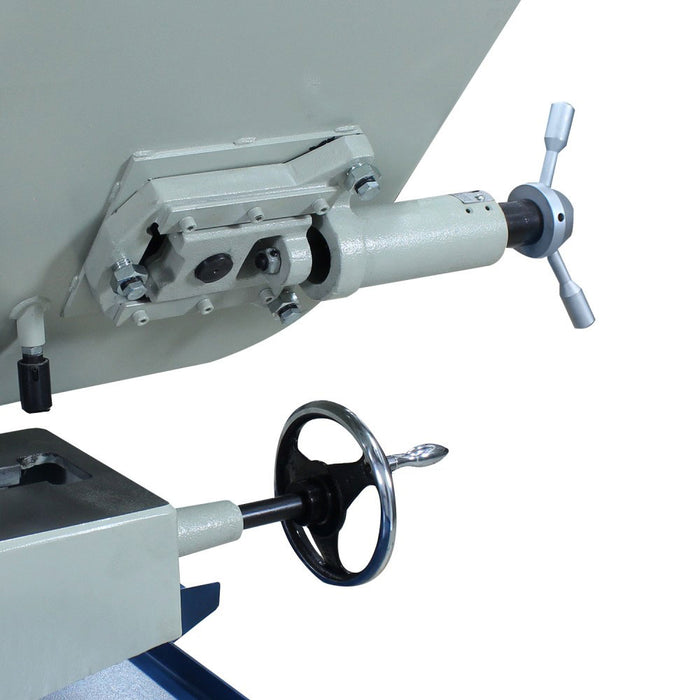

- Adjustable vise can move back and forth. A quick cam lock system holds it in place.

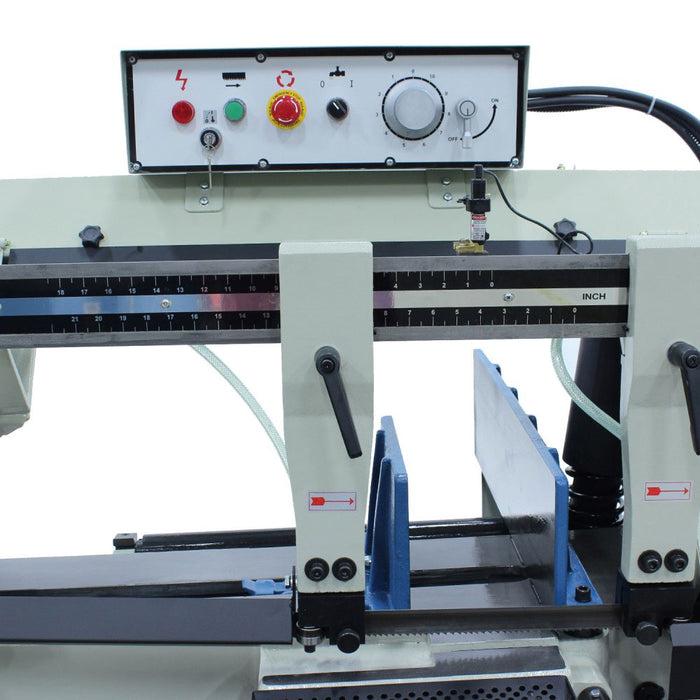

- Control panel has large start and emergency stop buttons and a dial for adjusting the speed.
- Swing-away material stop enables you to easily make repeatable cuts.
- Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.

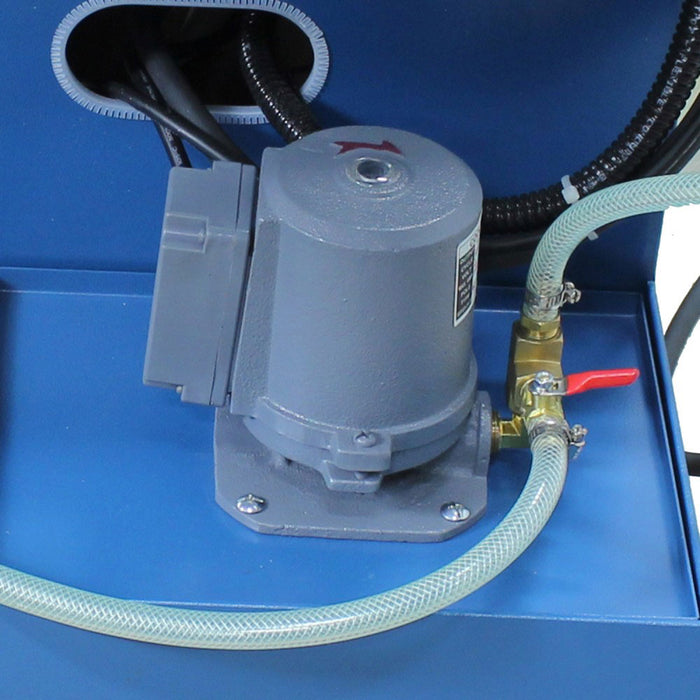

- Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
- Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
- Weighs over 1,800 lbs.
- Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
- This metal band saw and its replacement parts are almost always in stock for quick deliveries.
- Covered by a 1-year parts warranty.
What's in The Box
- BS-330M - Metal Cutting Band Saw
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V / 3-phase|
|Miter Adjustment||Swivel Head and Vise|
|Miter Angle||0 – 45°|
|Included Accesories||Included Accesories|
|Capacity Rectangular 90° x 45°||13" x 18.9" / 11" x 10.04"|
|Capacity Round 90° x 45°||13" x 8.86"|
|Capacity Square 90° x 45°||13" x 8.86"|
|Blade Guide||Carbide x Roller|
|Blade Size||1.3" x .043" x 161.4"|
|Blade Speed (fpm)||82–270|
|Drive||Belt x Pulley|
|Shipping Dimensions (Inches)||90x37x63|
