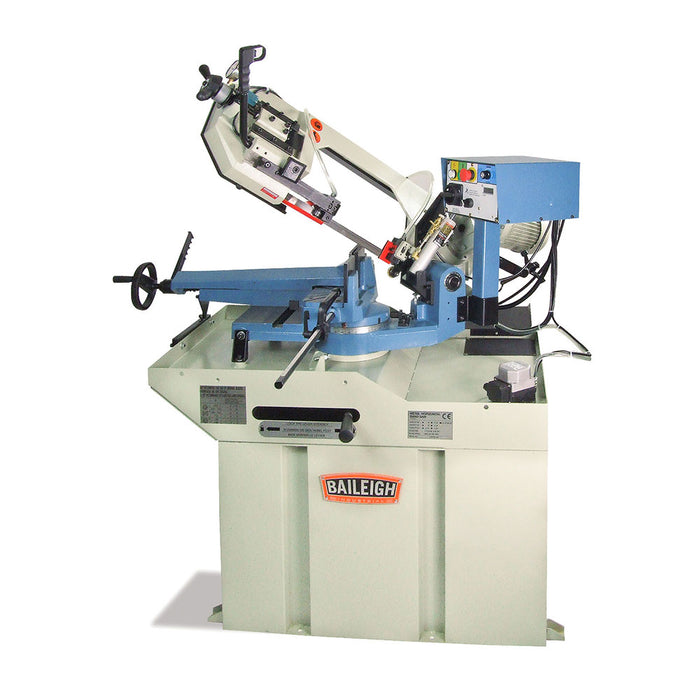

Baileigh 1001432 BS-260M 220V Gear Driven Band Saw w/ Welded Steel Base

$6,799.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1001432
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Capacity of 8.66” round at 90°.

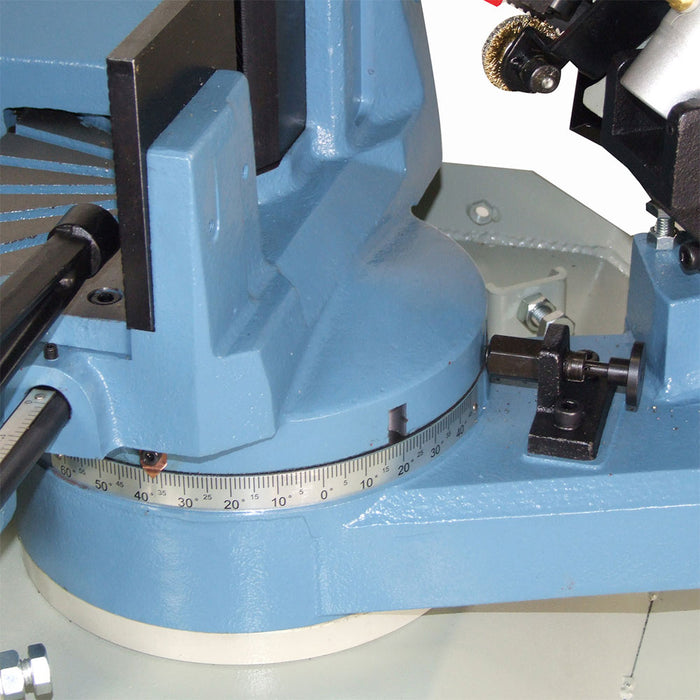

  • Dual-mitering head swivels up to 60° to the right and up to 45° to the left.

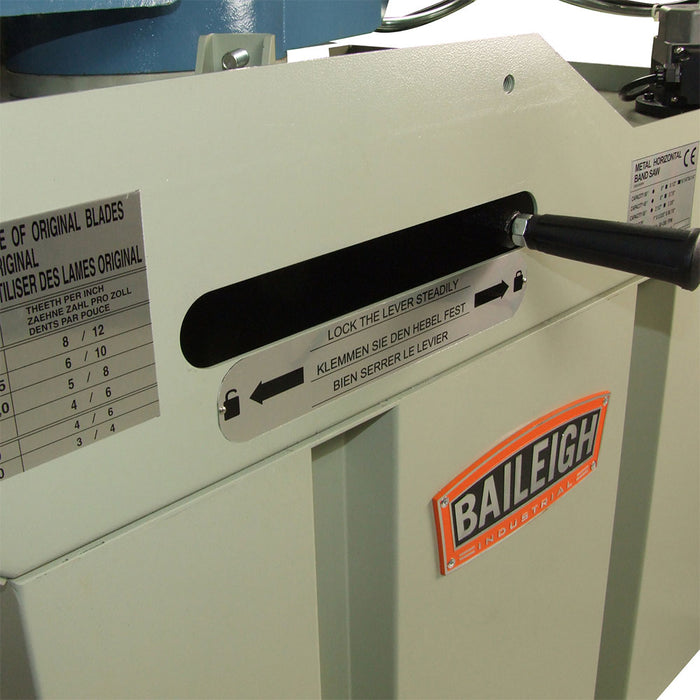

  • Change the miter angle in seconds with the quick-release head lock.
  • Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
  • Accepts standard 1” blades.
  • 8 precision ball bearings keep the blade in line.

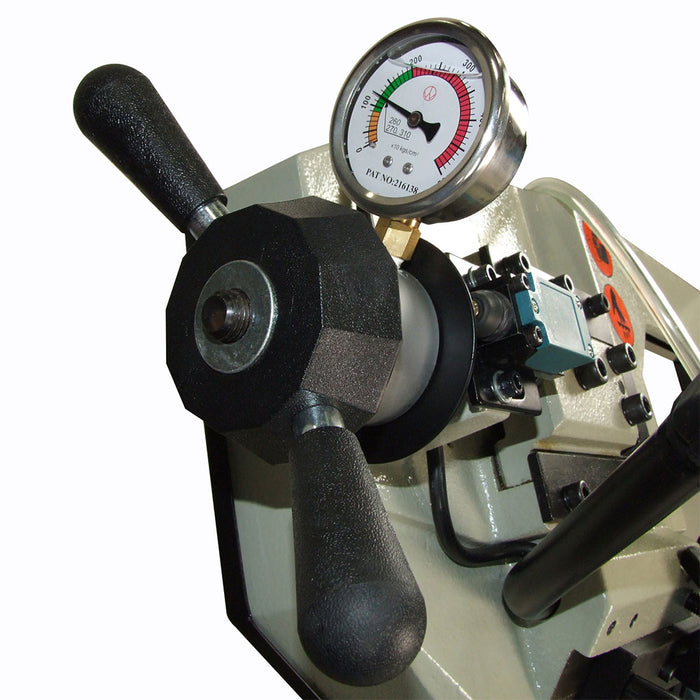

  • Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.

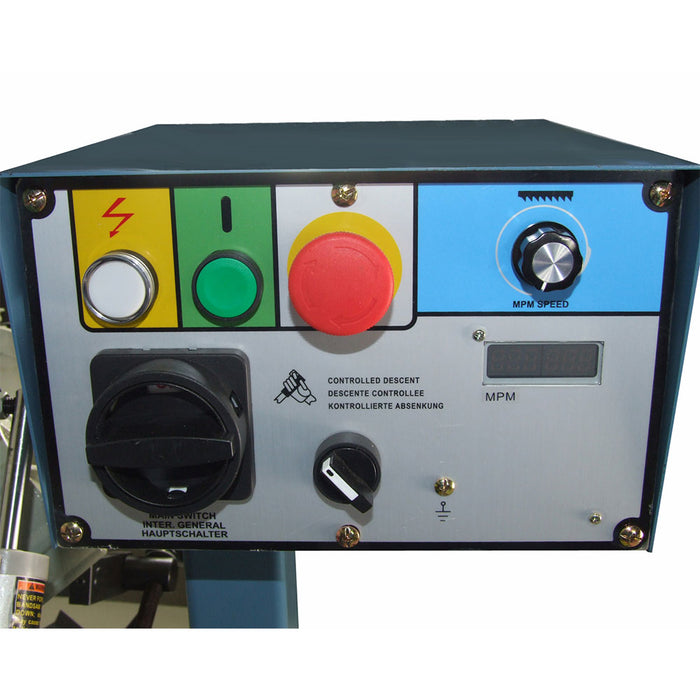

  • You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.

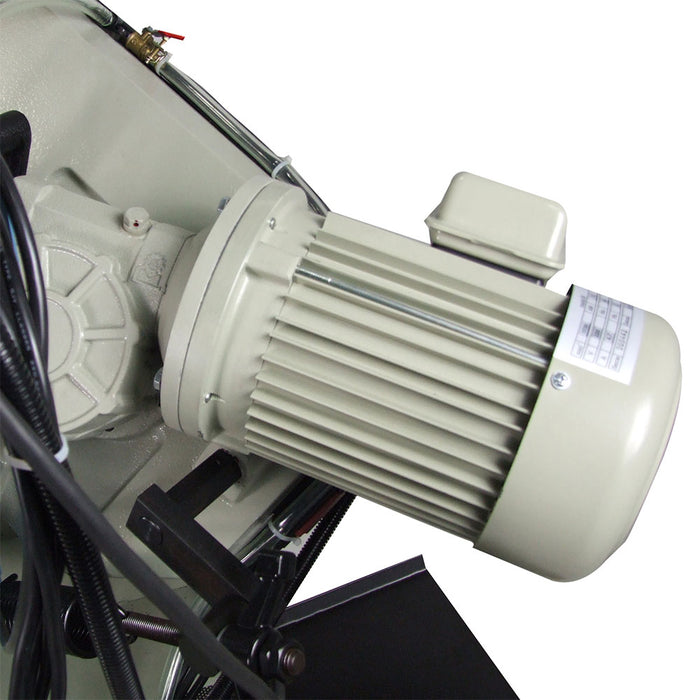

  • Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!
  • 2 operating modes:
  • Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops.

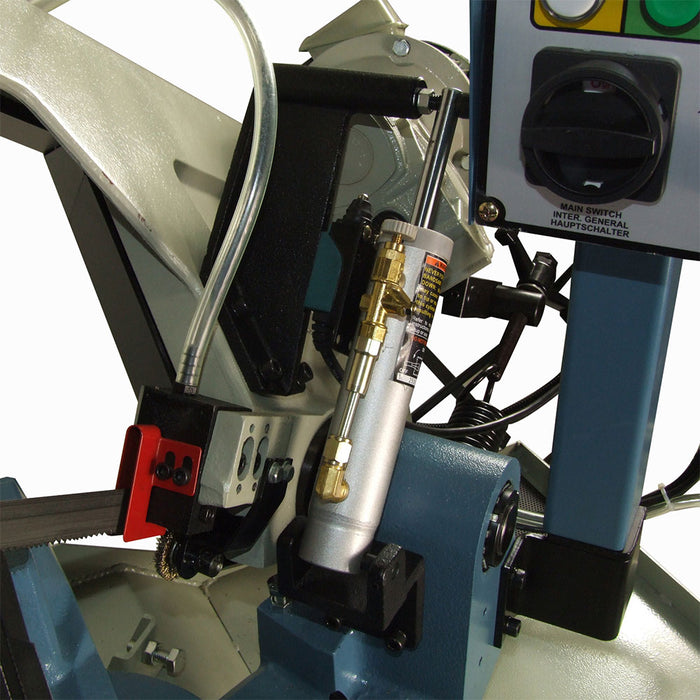

  • Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a downfeed adjustment for feed pressure.
  • Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
  • Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
  • Baileigh covers this small horizontal band saw with a 1-year parts warranty.
What's in The Box
  • BS-260M - Gear Driven Band Saw
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BS-260M
Power 220V 1-Phase
Motor Hp 1.5
Return Manual
Miter Adjustment Dual Swivel Head
Miter Angle 0 – 60°, 45°L
Motor High Torque 1.1Kw (AC)
Capacity Round 90 x 45 x 60 x 45L 8.66" / 5.9" / 3.5" / 5.31”
Capacity Rectangular 90 X 45 X 45L 10.25" x 4.13" / 6.1" x 2.75" / 6.3" x 1.77"
Capacity Square 90 X 45 X 60 X 45L 8.46" / 5.7" / 3.34" / 4.33”
Table Height 35"
Blade Guide Carbide x Roller
Blade Size 1" x .035" x 96.85"
Blade Speed (fpm) 66–280 Variable
Descent Control Hydraulic
Drive Gear
Shipping Dimensions (Inches) 69 x 44 x 45
Weight 745 lbs
