Baileigh 1001396 BS-250M 110V 8" Horizontal Metal Mitering Head Band Saw
by Baileigh
$4,929.00
+ Free Shipping
Condition: New
SKU: BLH-1001396
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products

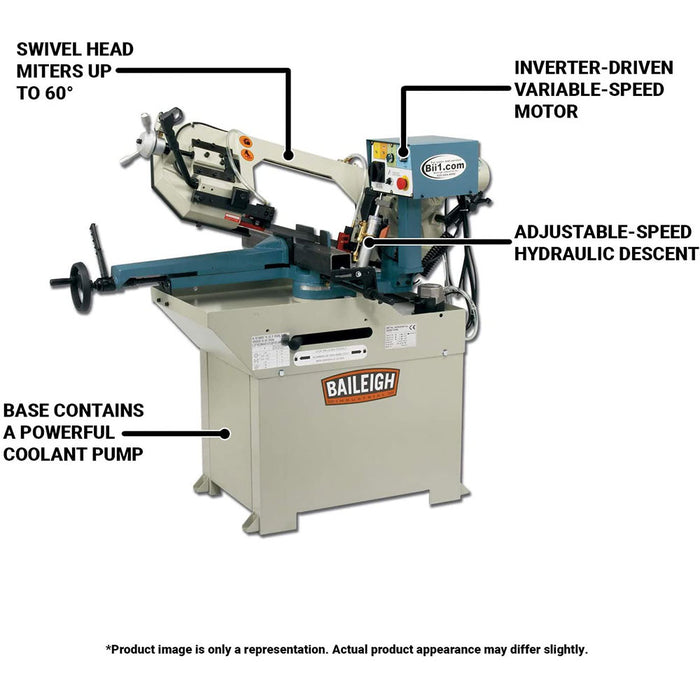

Features
- Runs on 110-volt single-phase power, so you can use it practically anywhere.
- Cuts up to 8.93” round metal stock at 90°.

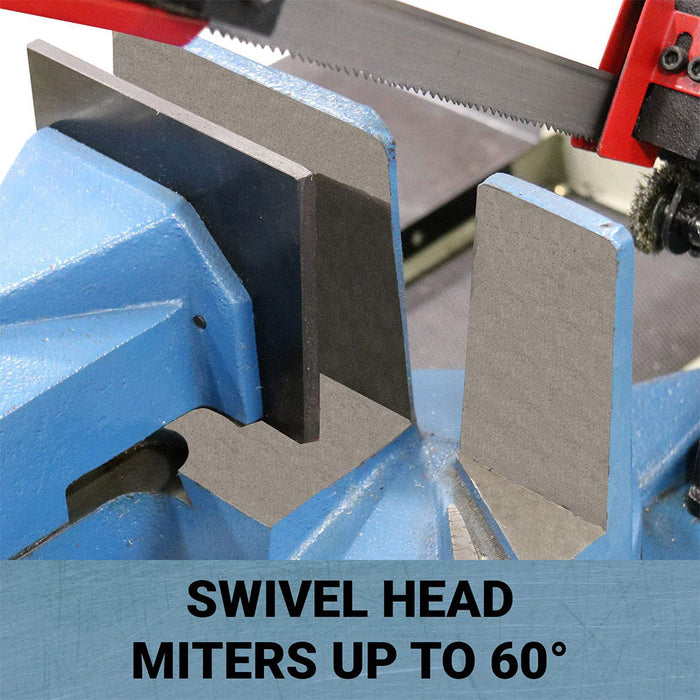

- Swivel head miters up to 60°.
- Angle changes takes seconds—and the vise stays in place.
- Cast iron saw head and bow reduce vibrations and keep the saw accurate.
- Accepts a standard 1” blade.
- Adjustable speed from 66 to 280 fpm for the blade and the material, increasing the blade life and decreasing costs.
- Patented blade tension device (a liquid-filled gauge) makes it easy to check the tension and correct it.
- An inverter drives the 2 hp motor through a gearbox, so there are no pulleys to adjust or belts to break!
- 2 ways to operate this metal band saw:
- Manual descent: Using the pull-down arm and trigger switch to activate the blade and coolant.

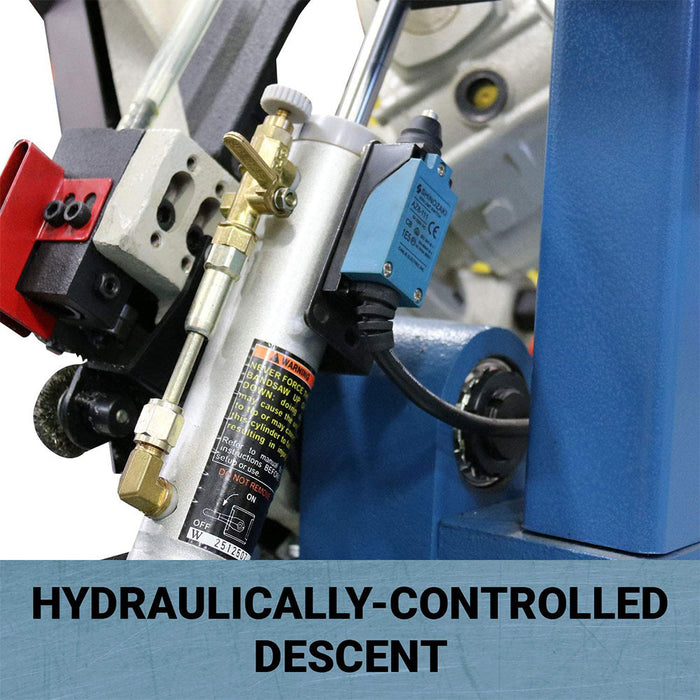

- Hydraulic descent: For production runs, you can switch the machine over to cut using the pressure you input. It will automatically shut down the blade and coola nt system when the cut is completed.

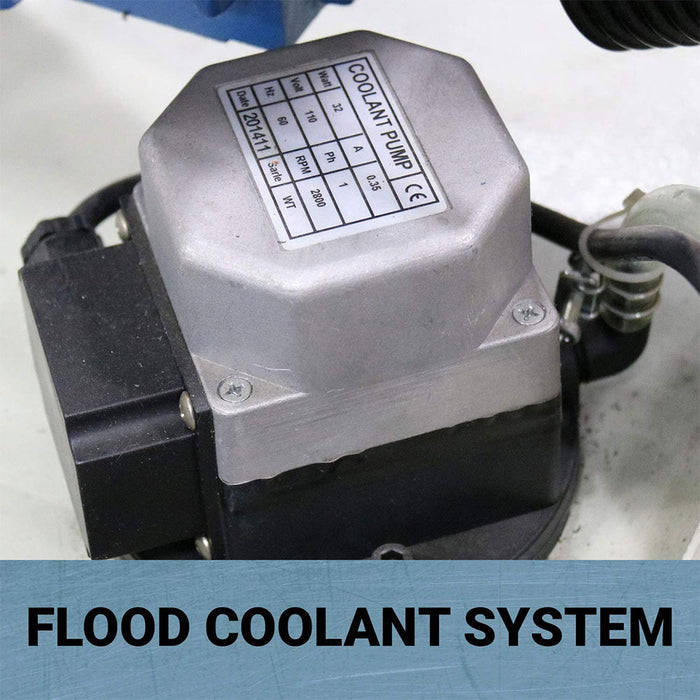

- Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer.
- Baileigh covers this horizontal mitering band saw with a 1-year parts warranty.
- We typically keep all replacement parts in stock for fast deliveries.
What's in The Box
- BS-250M - Mitering Band Saw
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
SKU | BS-250M |
Motor Hp | 2 |
Power | 110V |
Return | Manual |
Miter Adjustment | Swivel Head |
Miter Angle | 0 – 60° |
Motor | High Torque 1.1Kw (AC) |
Included Accesories | Included Accesories |
Capacity Rectangular 90° x 45° | 10.23" x 4.33" |
Capacity Round 90°/ 45° / 60° | 8.66" / 6" / 3.5" |
Capacity Square 90°/ 45° / 60° | 8.46” / 5.875" / 3.375" |
Table Height | 33.07" |

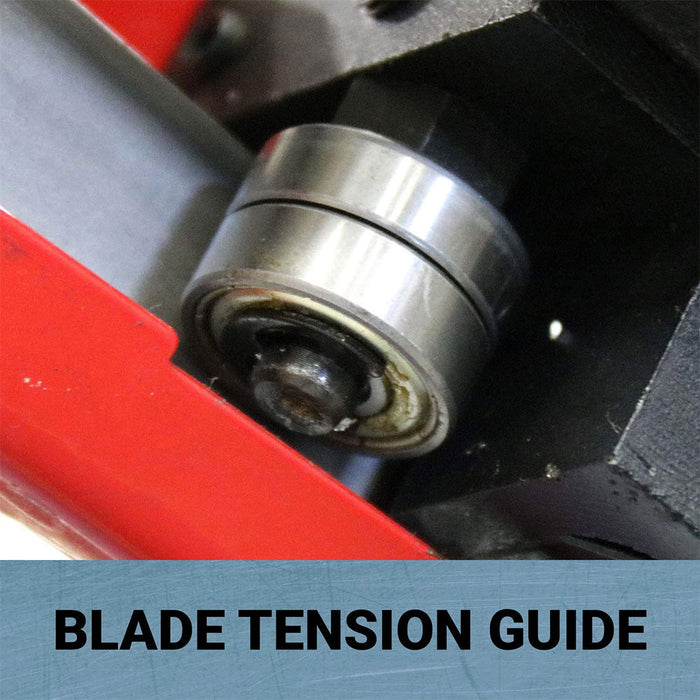

Blade Guide | Carbide x Roller |
Blade Size | 1" x .035" x 96.85" |
Blade Speed (fpm) | 66–280 Variable |
Descent Control | Hydraulic |
Drive | Gear |
Dimensions (Inches) | 69 x 44 x 42 |
Weight | 650 lbs |
