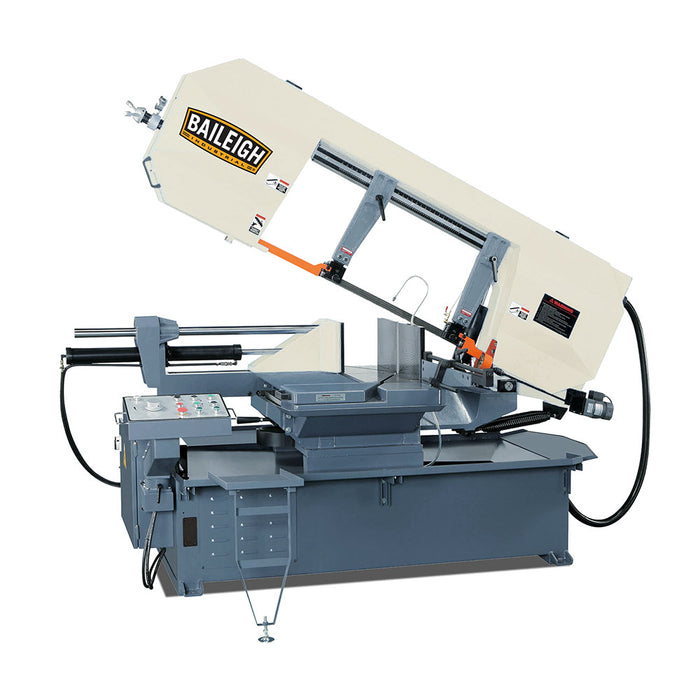

Baileigh 1001389 BS-24SA-DM 220V Semi Auto Dual Mitering Horizontal Band Saw
by Baileigh
$32,999.00
+ Free Shipping
Condition: New
SKU: BLH-1001389
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Cuts 18” round or 15” x 24” rectangle at 90°.
- Swivel head miters 60° left and right.
- Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
- 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
- Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
- Runs on 220-volt 3-phase power for reliability.
- Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.
- Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
- Industrial-grade hydraulics open and close the quick-lock vise.
- Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
- You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.
- Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
- Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
- Flood coolant system washes away metal chips and helps prolong blade life.
- We typically keep all replacement parts in stock for fast deliveries.
What's in The Box
- BS-24SA-DM - Semi-Automatic Dual Mitering Horizontal Band Saw
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | BS-24SA-DM |
| Power | 220 Volt Three Phase |
| Return | Hydraulic |
| Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle | 0 - 60° Left and Right |
| Motor | 5 hp |
| Capacity Round 90° | 18.1" |
| Capacity Square 90° | 18.1" |
| Capacity Rectangle 90° | 17" x 24" |
| Capacity Round 45° | 17.5" |
| Capacity Round 90°/ 45° / 60° | 18" x 15.7" x 11" |
| Table Height | 31.5" |
| Blade Guide | Carbide x Roller |
| Blade Size | 1.5" x .051" x 209.84" |
| Blade Speed (fpm) | 106 - 317 |
| Descent Control | Pressure Assist Hydraulic |
| Drive | Belt x Pulley |
| Dimensions (Inches) | 111 x 45 x 74 |
| Weight | 3550 lbs |
