Anker 3840Wh SOLIX F3800 Backup Kit w/ 50A Switch, 10 Circuit Transfer Switch
by Anker Solix
$599.00
+ Free Shipping
Condition: New
SKU: AKR-B17B31A1
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $12.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Designed with plug & play home backup capability (accessories sold separately).
- 6000W, 120 & 240V split-phase output in one unit for power-hungry appliances.
- 3.84–26.9kWh expandable capacity with up to 6 BP3800 expansion batteries.
- Scales up to 12000W and 53.8kWh for extended power outages.
- 2400W solar input charges from 0 to 80% in just 1.5 hours with sunlight.
- Equipped with NEMA 14-50 & L14-30 outlets for direct EV and RV charging.
- Smart energy monitoring via app control through Bluetooth and WiFi.
- Long-lasting LFP battery with a 5-year hassle-free warranty.
- Industry-leading components ensuring up to 10 years of lifespan.
What's in The Box

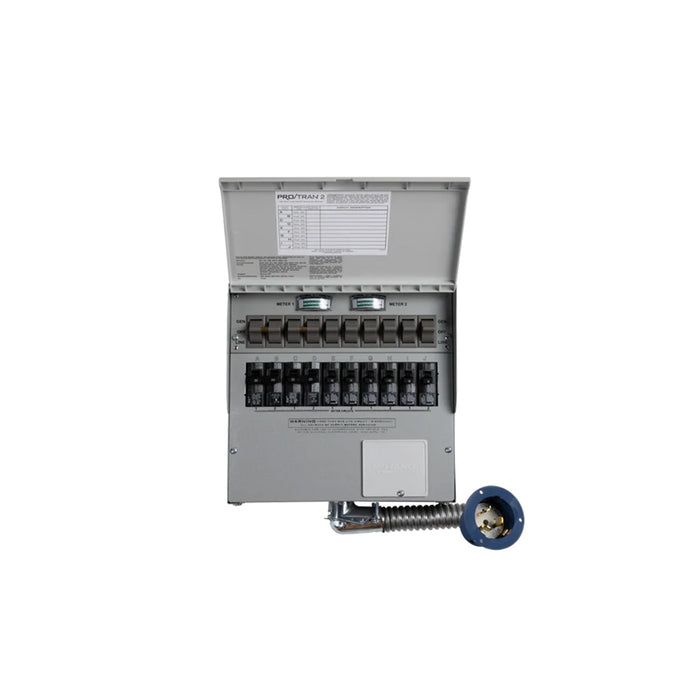

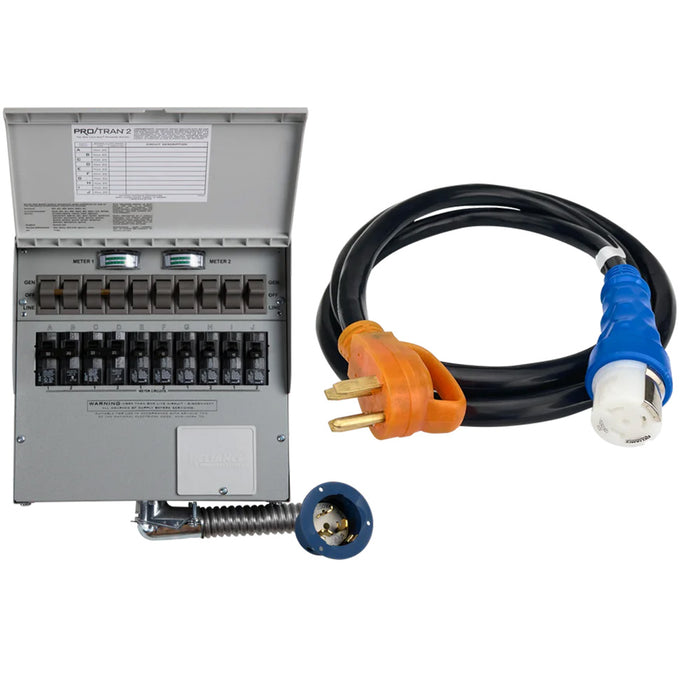

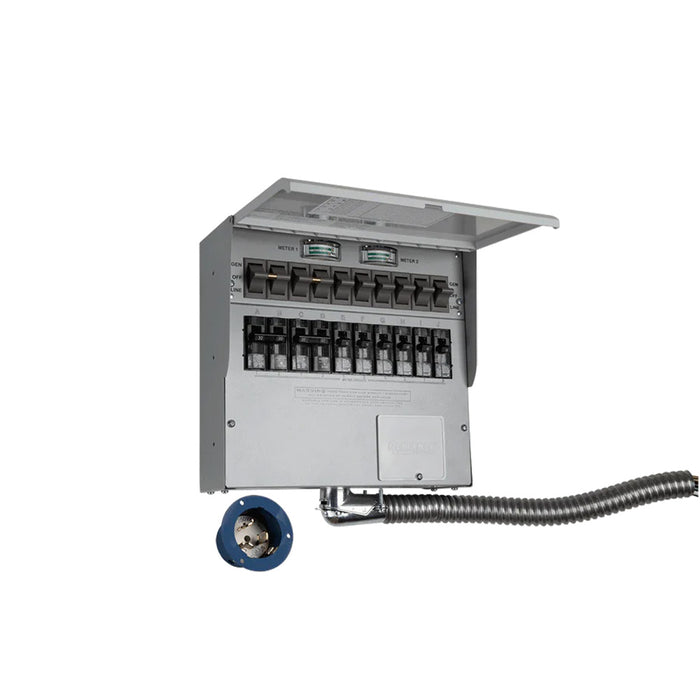

- Transfer Switch
- (1) Transfer Switch
- (1) SS2-50R to L14-50P Power Cord
- (50A, 3 m)
- (1) User Manual
- (1) Warranty card
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | B17B31A1 |
| Brand | Anker |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Cell Count | 80 |
| Cell Capacity | 51.2Vdc 75Ah / 3840Wh |
| AC Input | 120V~ 15A Max (3 hrs), 12A Continuous, 60Hz L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input | 11-32V⎓10A; 32V-60V⎓25A (1200W Max Each) |
| Car Charger Output | 12V⎓10A |
| Home Panel Power Port | 3800W Max Input / 6000W Max Output, 20V/240V, L1+L2+N+PE |
| Total AC Output Power | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA 14-50 / L14-30) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V⎓2.4A (12W Max per port) |
| USB-C Output | 5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A (100W Max per port) |
| UPS Response Time | 20ms |
| Discharging Temperature | -4°F to 104°F |
| Charging Temperature | 32°F to 104°F |
| Product Size | 27.6 × 15.3 × 15.6 in |
| Net Weight | 132.2 lbs |
| Backup Kit SKU | B17B31A1 |
| Voltage | 120/240V |
| Frequency | 60 Hz |
| Rated Watts | 12500 Watts |
| Rated Amps | 50 Amps |
| Enclosure | NEMA 1R |
| Conduit Length | 18 in |
| Number of Circuit Breakers | 10 |
| Max Amp Input | 50 Amps |
| Maximum Wattage | 12500 Watts |
| UL Listed | Yes |
| Backup Kit Dimensions | 11.25 × 11.75 × 4.5 in |
| Backup Kit Weight | 20 lbs |
| Expansion Battery SKU | A1790111-85 |
| Expansion Battery Capacity | 51.2Vdc 75Ah / 3840Wh |
| Expansion Battery Port Input | 75A Max |
| Expansion Battery Port Output | 170A Max |
| Expansion Battery Discharging Temp | -4°F to 104°F |
| Expansion Battery Charging Temp | 32°F to 104°F |
| Expansion Battery Size | 15.5 × 14.0 × 10.3 in |
| Expansion Battery Weight | 72 lbs |
