Video Snake SWJ-3188D 65' Pipe Wall Sewer Inspection Color LED Camera System

Out of Stock
$769.99


Condition: New
SKU: SWJ-3188D
Features

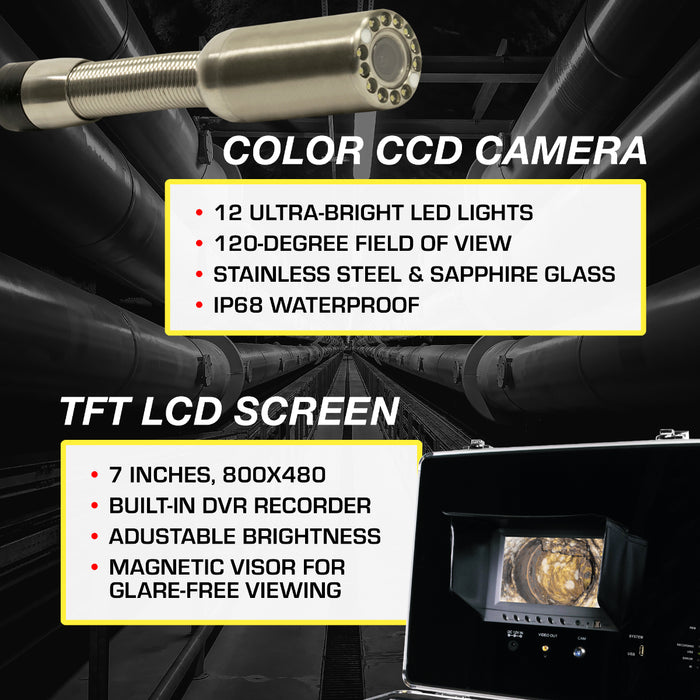

    Camera
  • 12 Ultra-brite LEDs, 120a-Degrees Field of View, 720x480 Resolution, IP68 Waterproof, DT and DTX Models Only: 512 Hz Sonde Transmitter
  • Cable w/ Reel
  • Meter Markings, Push Cable Reel
  • Monitor
  • Display Type: TFT LCD Digital Display. Resolution: 800x480, On Screen Menu, Video Input; 1VPP Composite Signal, Remote Control
  • Control Box
  • Modes: Charge, Off, AV, DVR. LED Brightness Adjustment, 4 Post Connector (from Soft Cable), RCA Video Out, Battery Indicator, 9 Control Buttons, Mic On/Off, Built in Microphone, AC Adapter In (12v), Battery In (12v), Earphone Out (Included), SD Slot (Standard not Micro), Fuse Holder (2A 250v Fast Blow, 2 Included), 4 Post Out to Screen
  • Carrying Case
  • Carrying Handle, 2 Keyed Locking Clips, 4 Footpads, Fitted High Density Foam Padding, Display Sunshade w/Magnetic Flaps.

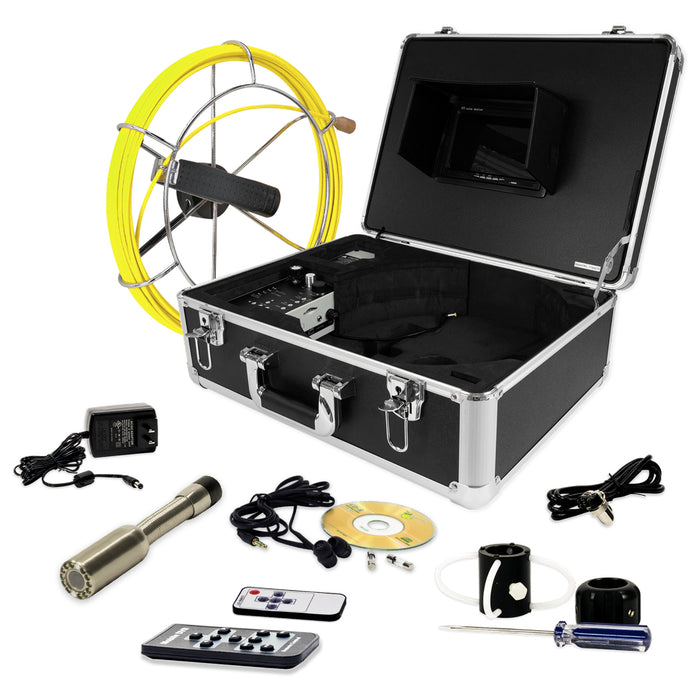

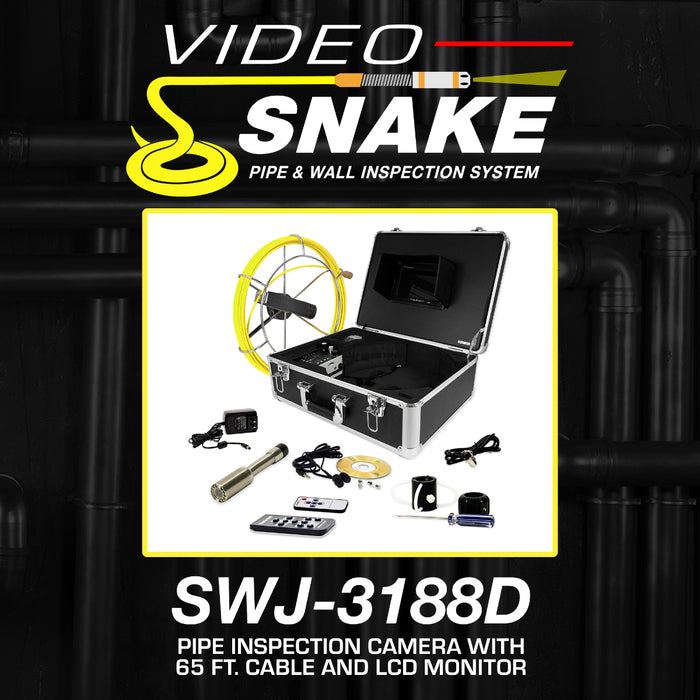

What's in The Box
  • Built-In Color Monitor
  • CCD Color Camera
  • 65-ft. Cable Spool
  • Built-In Battery / Charger
  • Monitor Power Supply
  • IR Remote
  • CODEC CD
  • Carrying Case
  • Owner's Manual
Warranty
  • 1-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku SWJ-3188D
Brand Video Snake

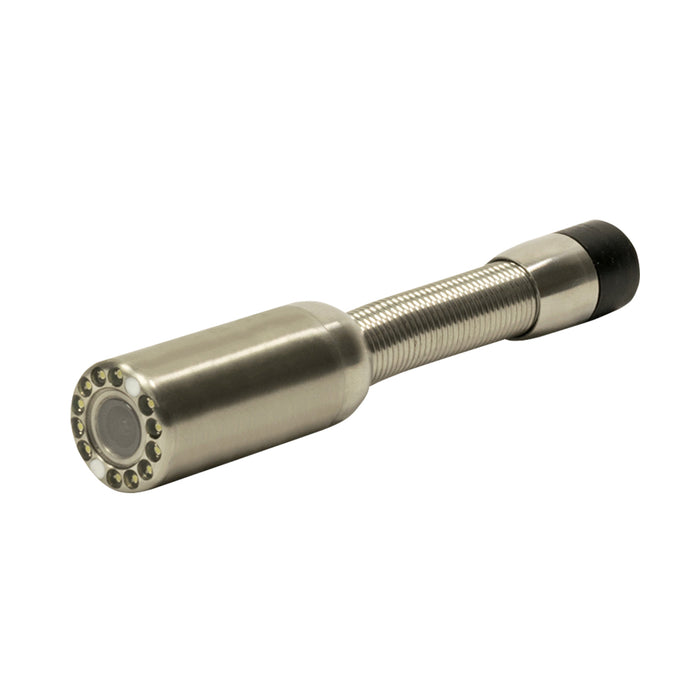

CAMERA
Construction Stainless Steel Housing, Heavy Spring,
Gold Post Connections
Dimensions Overall 7/8 x 4 1/4 (23mm x 108mm)
Diension Camera Only 7/8 x 1 3/4 (23mm x 45mm)
LED Count 12
Field of View (Degrees) 120
Resolution 720 x 480
Waterproof IP68
Sonde Transmitter (Hz) 512
Minimum Pipe 1
Minimum Pipe to 90aDegree 2 1/2

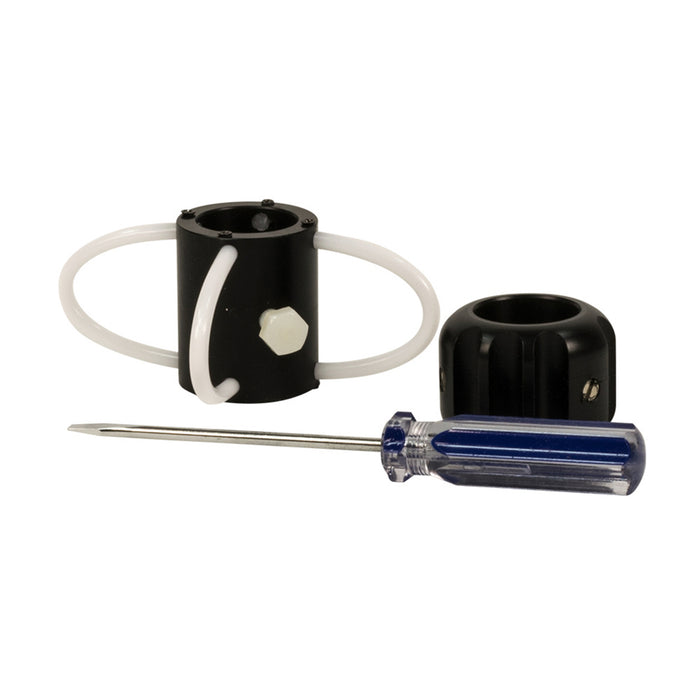

Camera Skids 1-1/2 and 3-3/4

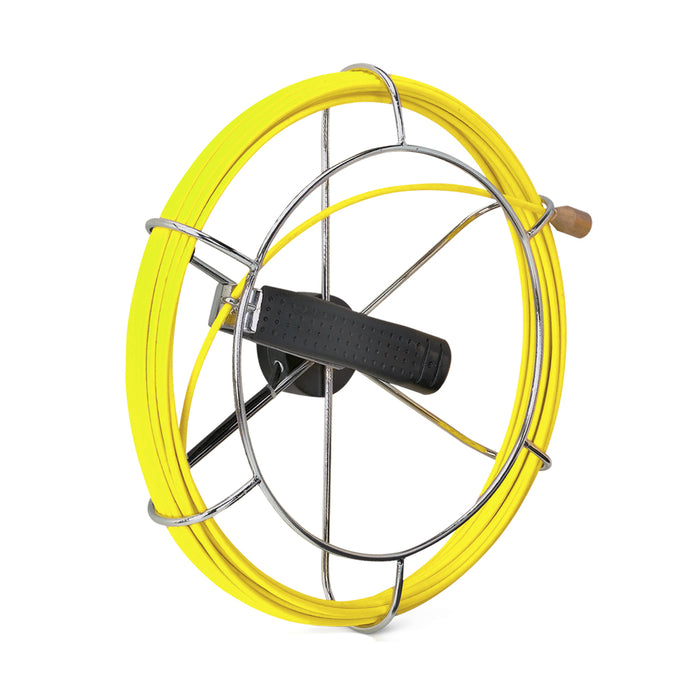

CABLE W/ REEL
Construction Fiberglass Rod Push Cable, Gold Contacts
Reel Dimensions 12 1/2 x 4 1/2
Cable Diameter .20 (5.2mm)
MONITOR
Dimensions 6 x 4 (7 Angled)
Display Type TFT LCD Digital Display
Resolution 800 x 480
Menu On Screen
Video Input 1VPP Composite Signal
Remote Control Yes
CONTROL BOX
Dimensions 3 1/2 x 6 1/2 x 2 1/2
Modes Charge, Off, AV, DVR
Video Out RCA
Post Connectors 4
Control Buttons 9
Voltage 12
Fuse Holder 2A 250v Fast Blow
BATTERY
Construction Li-Ion, UL Approved Battery
Dimensions 2 3/4 x 4 x 2
Total Power 14w
Charger Included 12.5v 1A
Charge Time 5 hrs
Work Time Less than or Equal to 300 Minute
SOFT CABLES (CONNECTS THE REEL TO THE CONTROL BOX)
Construction RVVP (copper core PVC insulated shield PVC sheathed
flexible cable voltage 300 v / 300 v2-24 core)
Dimensions 5' Cable and .20 Diameter
Connectors 2 All metal

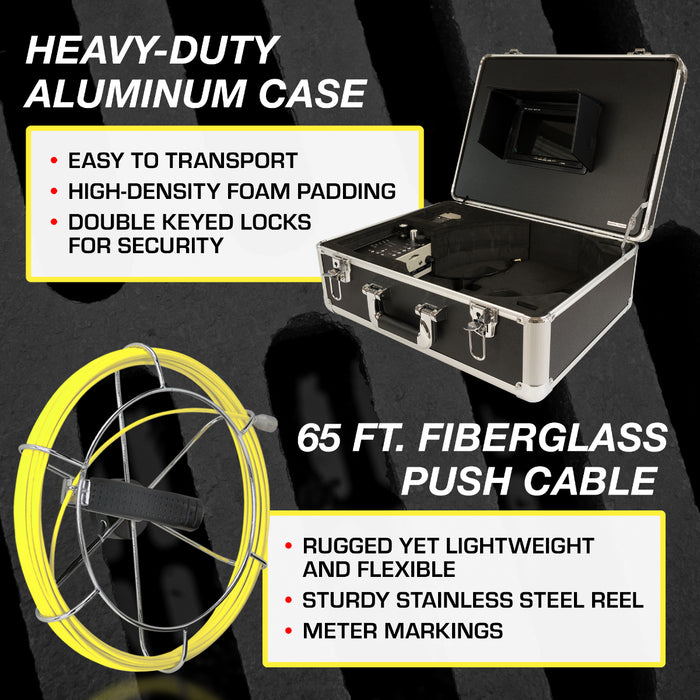

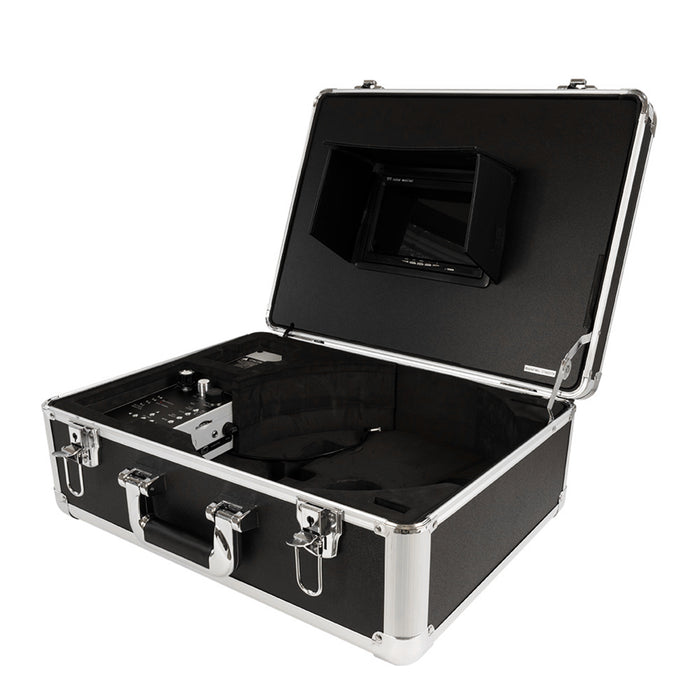

CARRYING CASE
Construction ABS w/ Metal Edging, Reinforced Corners
Dimensions 18 x 7 1/2 x 14
Locking Klips 2 Keyed
Footpads 4
Padding Fitted High Density Foam
Retail Box Dimensions 18 3/4 x 8 1/8 x 16 1/4
STILL NOT SOLD ON US? LET US CHANGE THAT!
GIVE US A CALL: 1-800-629-3325

product-experts

We Have Product Experts Available to Answer All of Your Questions.

free-shipping

We Offer Free Shipping on Orders Over $49. We Also Ship World Wide.

manufacturer-warranty

We Are A Factory Authorized Retailer Offering Full Manufacturers Warranty.

multiple-payment-options

We Offer Multiple Secure Payment Options. Affirm Financing is Also Available.


We strive to provide the best customer service and product support for our customers, so you can feel confident that you are purchasing the product that best suits your needs. We have Product Experts available to answer any questions and concerns you may have, and we will work with you to ensure that your order is correct every time. Our family-run business has always put our customers first, so when you buy from us you’re family.

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
S.
Surprisingly high quality equipment - Instructions could be better

I was particularly impressed with the quality of the case, camera, and the control unit. The weight of the dials had me thinking this had to have been made in Germany. It looks like something you'd see in a high-tech hospital operating room.



If I have a complaint it is that the users manual looks like it was written by somebody who is illiterate in both Chinese AND English. Despite that I was eventually able to figure out how to charge the unit, and connect all the parts.



All-in-all, I'm very pleased with the purchase.

n
n.
You don't need to spend any more money than this!

I am a 65 year old remodeling contractor working for a company that has several properties. We have recently had a "rash" of sewer line problems (must be that time of month!), and have had to camera sewer line problems at 4 properties.I was there watching the monitor as the camera work was being done. I have to say, the units that were being used had from poor to great image quality. Each plumber reported their units cost from $2000 to $4000.When I received our unit, we happened to have had a stopped up sewer line at one of our properties, and had to pull a toilet to snake the line (no clean out). After breaking the clog, we decided to use the camera for the first time to see how it worked.Took a minute to figure out how to un-spool and spool the snake using the cage and handle provided, but easy once we figured it out.The image we got back was as good as ANY I saw from the expensive units the plumbers used!We were charged from$150 to $200 for each video snake job, and on one job the plumber couldn't get more then about 8 feet before he hit a turn he couldn't get around, but charged the full price anyway!This unit will certainly pay for itself pretty quick, and we are planing on using it on potential new properties before they buy the house.The unit comes with two camera "skid" devices to hold it off the inside of the pipe. One is a round ball about 1-1/2" in diameter, and the second is a metal part with 4 plastic arched pieces that look sort of like the Gateway Arch in St. Louis [much, much smaller, of course! {;) ] The first time we put the larger one in the pipe, we tried to bring it back to check the light (we didn't know how to turn it on yet), and it got caught somehow. My assistant had to put his arm down the pipe to get it out, and we broke one of the arch pieces in the process. But it is held in place with set screws, so should be easy to replace. We went to the ball, and had no problems. Would highly recommended using the ball attachment all the time si...

R
R.
Great camera for the price

First off, let me say that the manual is extremely poorly written by someone whose first language is not English. It is too short and does not explain very much. Having said that, I gave the camera five stars. With a little playing, you will figure out most of the features on your own. 65' of cable is enough for most of my inspection jobs. I like being able to burn a DVD for clients. This unit paid for itself my first sewer line replacement job by not having to replace good clay pipe all the way to the sewer main. Only by having this camera was I able to ascertain that. I put in a 32 GB SD card, which has enough capacity to record for a long time. At less than one-tenth the price of the name brand camera, you can't get hurt much with this unit.

D
D.
Video snake

Paid for itself the first day on the jobCompact good battery life and east to figure out. 65' of tube is sufficient for most residential workGreat price

L
L.
Works Great /Better than expected

I have been pleasantly surprised by its accuracy and dependability. It costs much less than most other units and has a color display. It it has paid for itself several times already. Thanks again. Also the case is rugged so it can take some abuse in the back of my truck
