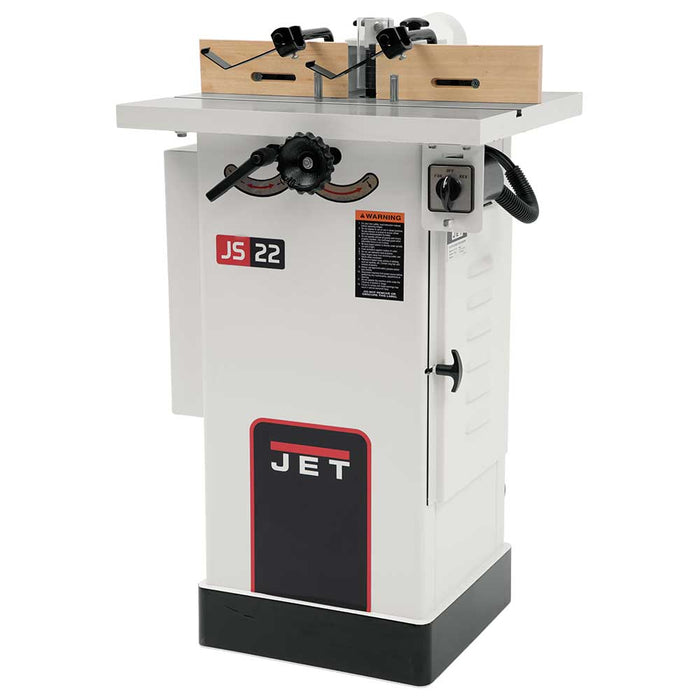

Jet JWS-22CS, 1-1/2HP Shaper, 1Ph 115/230V, 1/2" and 3/4" Spindle 708320
- Starting Pins for irregular shaping

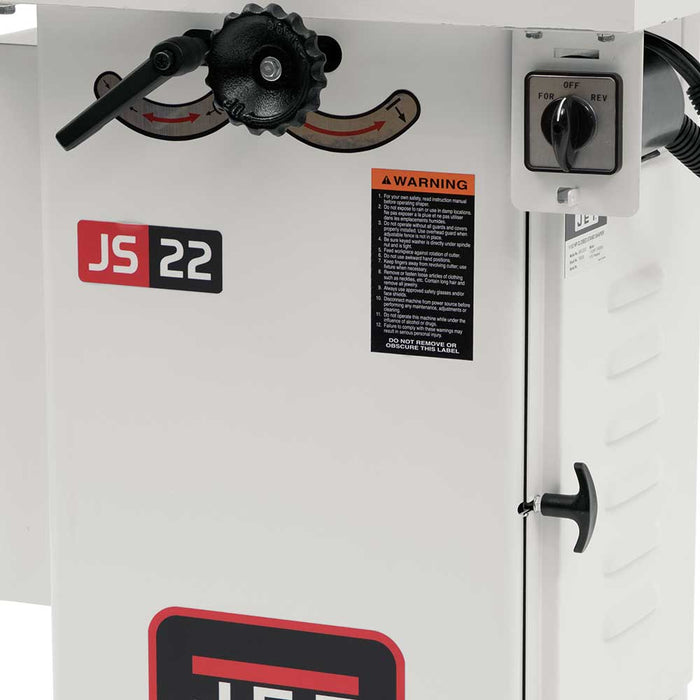

- Forward/reverse switch for left and right hand operation
- Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters

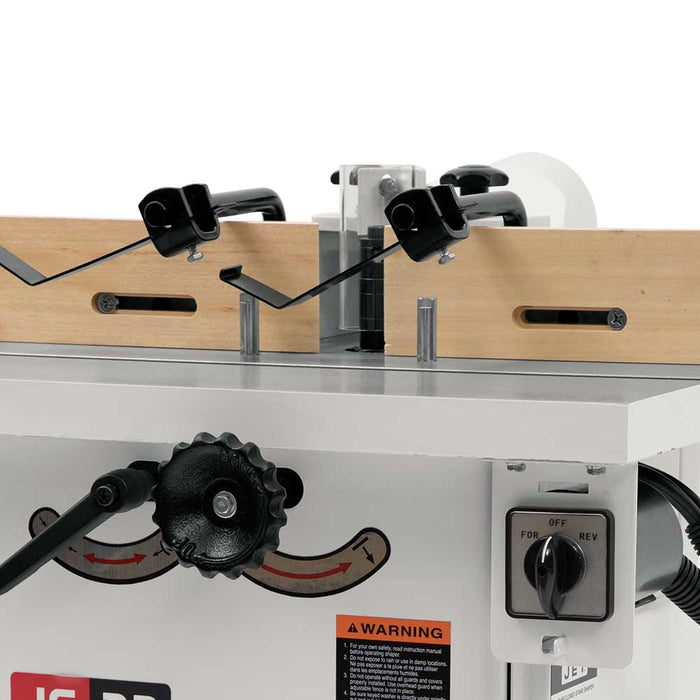

- Independent left and right fences feature micro-adjustment and have zero-clearance capability
- Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Positive detent spindle lock allows safer, easy cutter set-up
- 4 dust port connects to your collection system to keep your workplace dust and debris-free

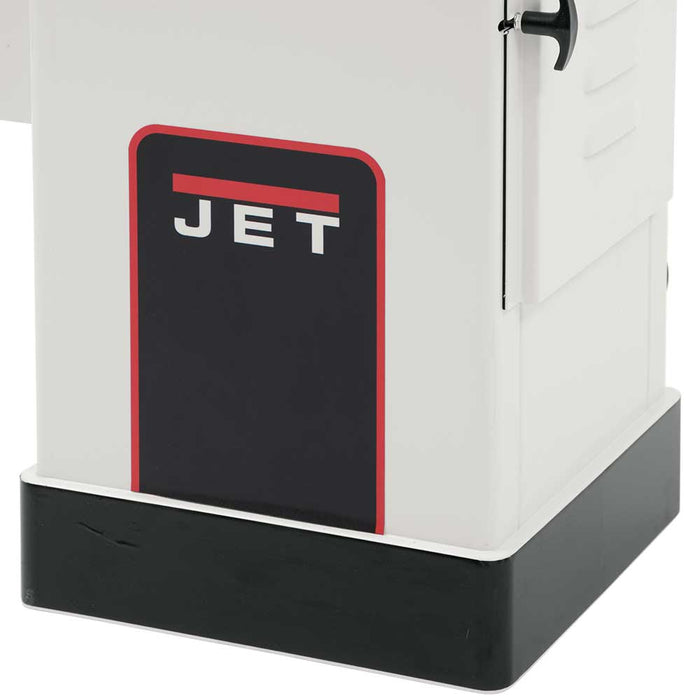

- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
- 1/2 and 3/4 interchangeable spindles and router bit collets for use with shaper cutter and router bits
- Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs
- 22-1/4 x 18-1/8 solid cast iron table provides a durable work area
- Two adjustable work hold-downs to secure your work while shaping
What's in The Box
- JWS-22CS, 1-1/2HP Shaper, 1Ph 115/230V, 1/2 and 3/4 Spindle 708320
- JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
- 30 Day Satisfaction Guaranteed
|Spindle Speed (RPM)||7000/9000|
|Maximum Spindle Diameter (In.)||1/2, 3/4|
|Spindle Size Under Nut (In.)||1/2 (2-1/2), 3/4 (2-15/16)|
|Spindle Travel (In.)||1-7/16|
|Router Bit Collet Included||1/4, 1/2|
|Table Opening Diameter (In.)||5-1/4|
|Table Insert Opening Diameter (In.)||1-5/8, 3-1/4|
|Table Size (L x W) (In.)||22-1/4 x 18-1/8|
|Table T-Slot (In.)||3/4 x 3/8|
|Table Height from Floor (In.)||33-1/2|
|Fence Size (L x H) (In.)||10 x 3-1/8|
|Dust Port Outside Diameter (In.)||4|
|Motor Power (HP)||1-1/2|
|Motor Phase (PH)||1|
|Motor Voltage (V.)||115/230|
|Prewired Voltage (V.)||115|
