Condition: New
SKU: JET-350020
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- One-piece cast iron column for added support
- Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
- The base taper allows for easier cleanup
- Drill Press angle vise
- UL Listed motor
- Extra-large worktable
- Positive quick-stop knob and easy to read internal depth gauge
- 360-degree head swivel
- Work lamp
- Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
- 1/2” drill chuck, chuck arbor
- Drawbar
- Drill Chuck Guard
- Adjustable Carbide face mill

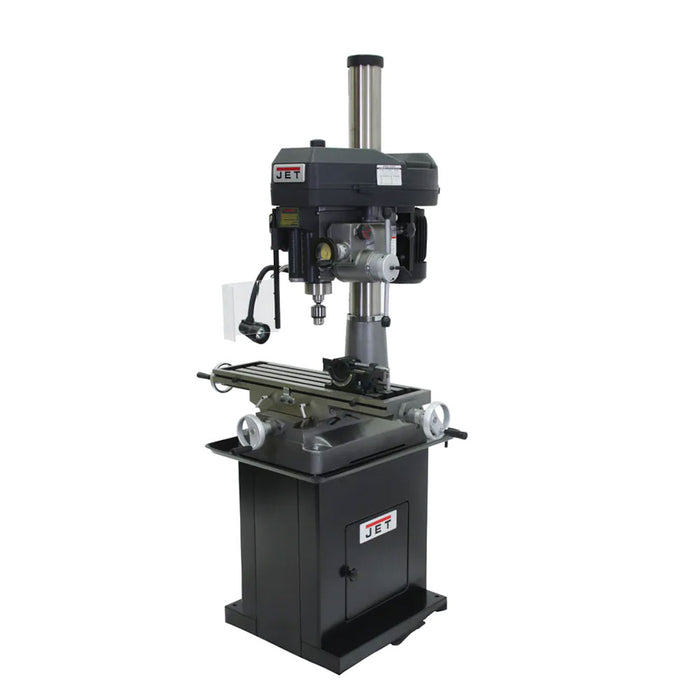

- Mill Drill Stand, p/n 320020, shown in some images, is optional
What's in The Box
- Mill/Drill w/ Power Downfeed
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | JMD-18PFN |
| Brand | Jet |
| Volts | 115/230 |
| Horsepower | 2 |
| Phase | 1 |
| Powerfeed | Downfeed |
| Drilling Capacity | 1-1/4 in |
| Face Mill Capacity | 3 in |
| End Mill Capacity | 3/4 in |
| Swing | 15-7/8 in |
| Max Distance Spindle to Table | 28 in |
| Spindle Taper (in x TPI) | R-8 |
| Spindle Travel | 5 in |
| Spindle Travel Auto | 4-1/4 in |
| Quill Down Feed Rates (IPR) | 0.0047, 0.007, 0.001 |
| Quill Diameter | 3 |
| Column Diameter | 4-1/2 in |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 150 -3000 |
| Table Size (LxW) | 9-1/2 x 31-3/4 in |
| Table Longitudinal Travel | 20-1/2 in |
| Work Table Weight Capacity | 400 lbs |
| T-Slots Number and Size | 4 and 5/8 in |
| T-Slot Centers | 1-13/16 in |
| Dimensions (L x W x H) | 47 x 40 x 51 |
| Weight | 700 lbs |
