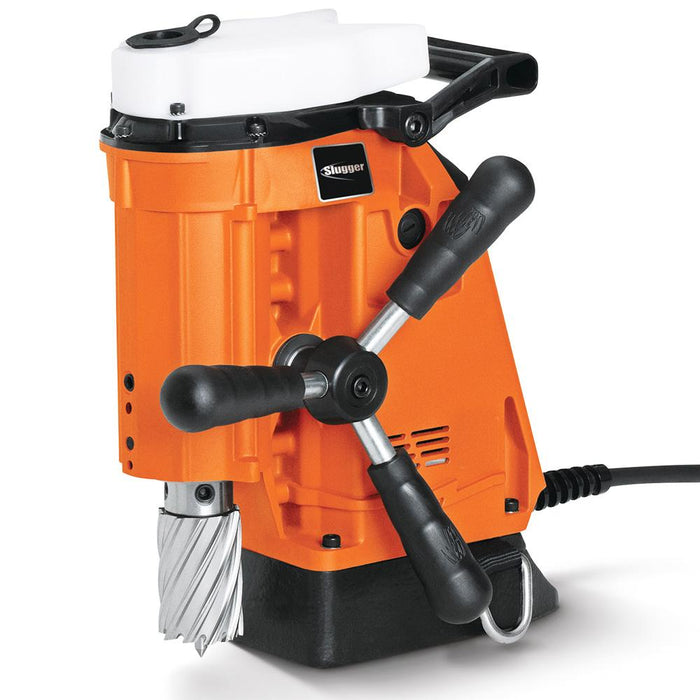

Fein 72725361127 120-Volt 1-3/16 - 1-5/8-Inch Magnetic Base Drill - JHM MAGFORCE
by Fein
$1,449.95
+ Free Shipping
Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To
Condition: New
SKU: FEN-72725361127
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Motor and drill jig are constructed as a single piece to enable the unit to stand up to the toughest conditions.
- Compact dimensions make it easy to work in confined or hard-to-reach places.
- Drill shaft is mounted without play and with no maintenance requirements in a spindle sleeve for precision drilling results and positive slug ejection.
- Fixed motor
- Gravity-fed cooling lubrication
- Concealed motor wiring
- Contact and chip guard
- Solid die-cast aluminium construction
- Right or left hand feed handles
- Quill feed eliminates field maintenance for slides and arbor support
- Machine height does not change unless coolant bottle is removed - minimum height 11.38 (325 mm)
What's in The Box
- 1 case
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 4 pilot pins
- 1 - 5 mm socket head wrench
- 1 contact guard
- Owners Manual
Warranty
- 3-Year Limited factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | JHM MAGFORCE |
| Max. cutter diameter in (mm) | 1 5/8 (40) |
| Max. cutter drilling depth in (mm) | 2 (50) |
| Power consumption | W1,200 |
| Power output | W610 |
| No load speed rpm | 450 |
| Load speed rpm | 280 |
| Cutter holder | 3/4 Weldon shank |
| Stroke in (mm) | 2-1/2 (65) |
| Magnetic holding force lbs (N) | 2,023 (9,000) |
| Magnet foot dimensions in (mm) | 6-1/2 x 4 (165 a- 102) |
| Height in (mm) | 12.80 (325) |
| Width in (mm) | 6.5 (165) |
| Length in (mm) | 11.29 (287) |
| Cable with plug ft (m) | 13 (3.8) |
| Weight according to EPTA lbs (kg) | 29 (13.1) |
