Baileigh 1022028 WR-84V-ATC 220V CNC Router Table w/ Fully Welded Steel Frame

Out of Stock
- +

Condition: New
SKU: BLH-1022028
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Large 4’ x 8’table.
  • Arrives pre-built with correct alignment. No complicated set-up process.
  • Comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
  • Runs on 220-volt 3-phase power.
  • Powerful 10hp spindle can tackle hard materials without flinching.
  • 7.5 kilowatt air-cooled spindle will stay accurate through years of production.
  • Variable spindle speed, from 3000 to 24,000 rpm.
  • Servo motors ensure smooth running at both fast and slow speeds.
  • High gantry is up and away from material, allowing you to see what it’s doing.
  • Y axis moves far enough for the gantry to clear the table. You can take the material directly off; no need slant it awkwardly.
  • Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision.
  • Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.

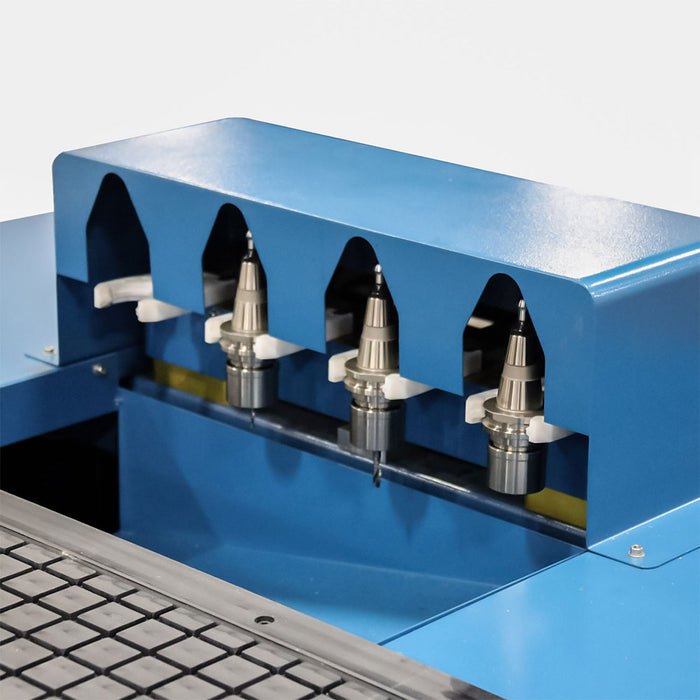

  • Pre-load up to 4 collets with your chosen profiles; the router will switch between them as programmed.

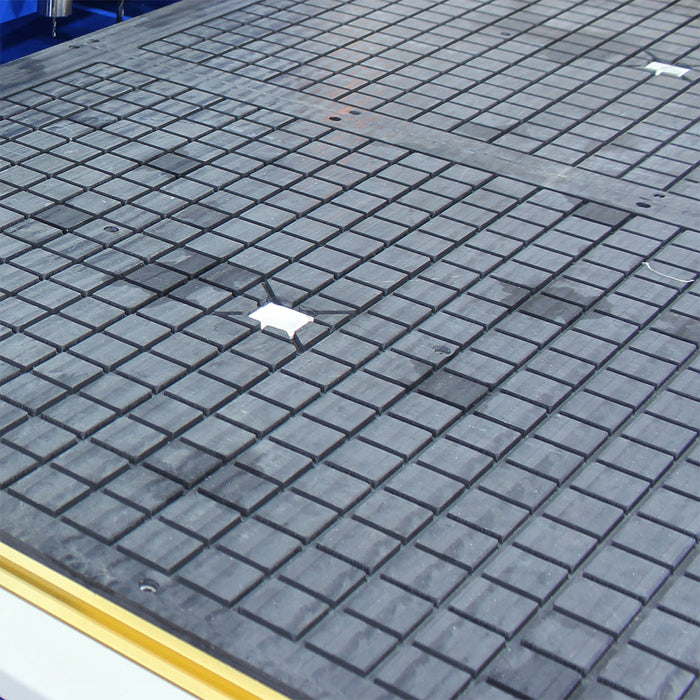

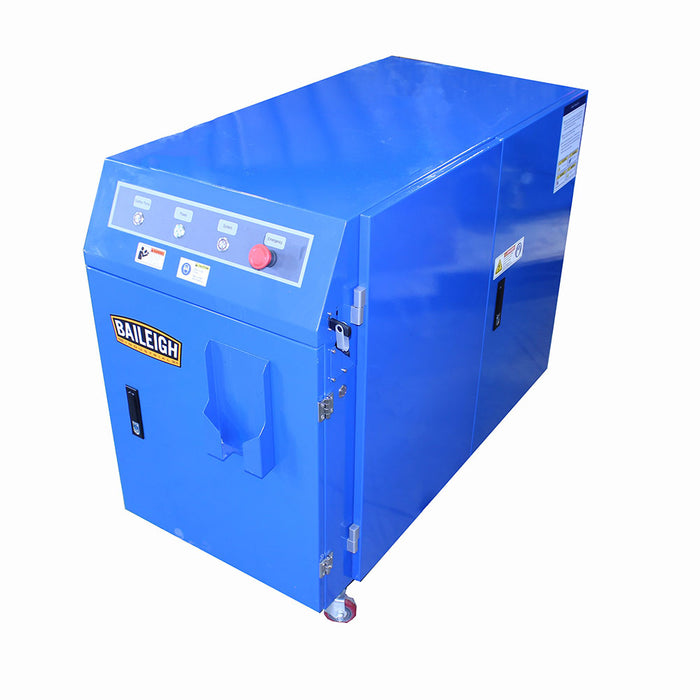

  • Powerful 7hp vacuum in the bed of the table holds the material in place during the cutting process.
  • 4 vacuum zones allow you to turn on the valve only for the area where you’re working.
  • Arrange each zone’s vacuum seal into the shape of the material to provide well-distributed suction.

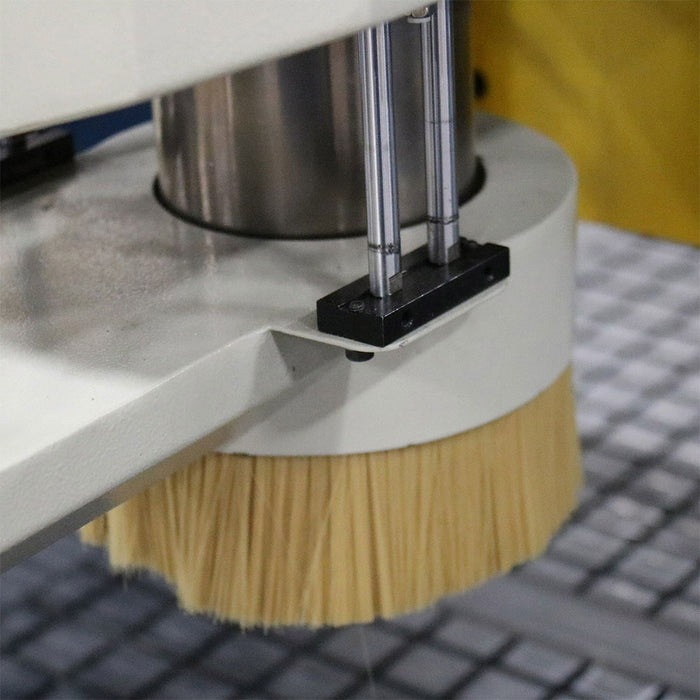

  • Dust shroud fits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
  • Fully-welded steel frame keeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
What's in The Box
  • WR-84V-ATC - CNC Router Table
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU WR-84V-ATC
Power 220V Three Phase
Actual Working Area 96.5" x 50.5"
Speeds 7 (3,000 - 6,000 - 9,000 - 12,000 - 15,000 - 18,000 - 24,000 rpm)
Spindle Air Cooled
Z Axis Stroke 8"
Maximum Moving Speed (Inches Per Minute) 394
Maximum Engraving Speed (Inches Per Minute) 394
Reposition Accuracy 0.0019
Tool Diameters 1/8”, 4mm, 6mm, & 12mm
Length 132"
Width 83"
Height 70"
Horse Power 10
Table Style Vacuum
Notes Applicable Materials - Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches) 144x82x81
Weight (lbs) 4800
