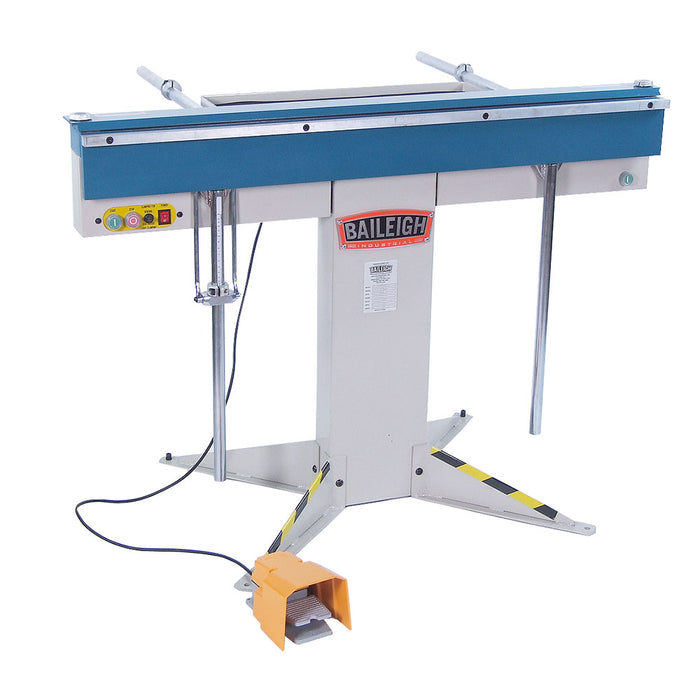

Baileigh 1000490 BB-4816M 48" x 16 Ga Magnetic Sheet Metal Brake

$3,599.00 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: BLH-1000490
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Runs on 220-volt single-phase power and will work at virtually any site.
  • 48” (4-foot) length with a maximum capacity of 16 gauge mild steel.
  • The breakthrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake.
  • 6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake.
  • Scaled stroke angle control lets you deliver repeatable bends time after time.

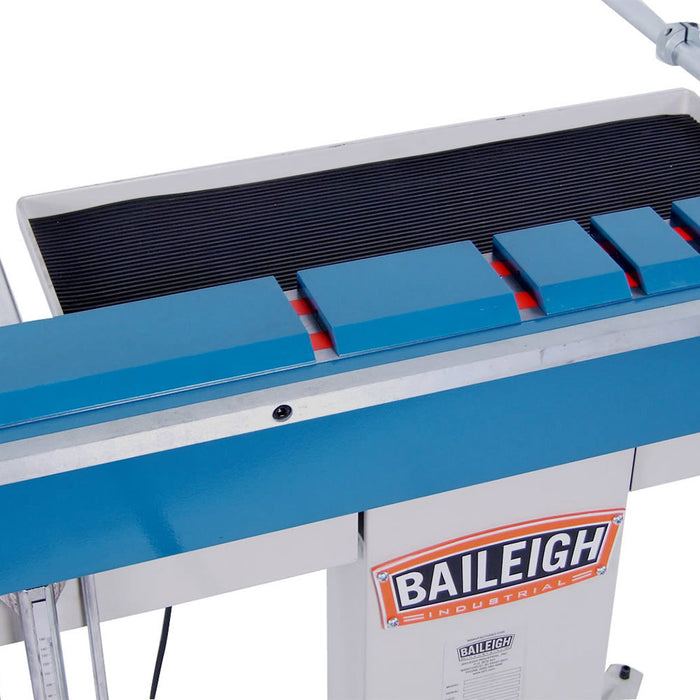

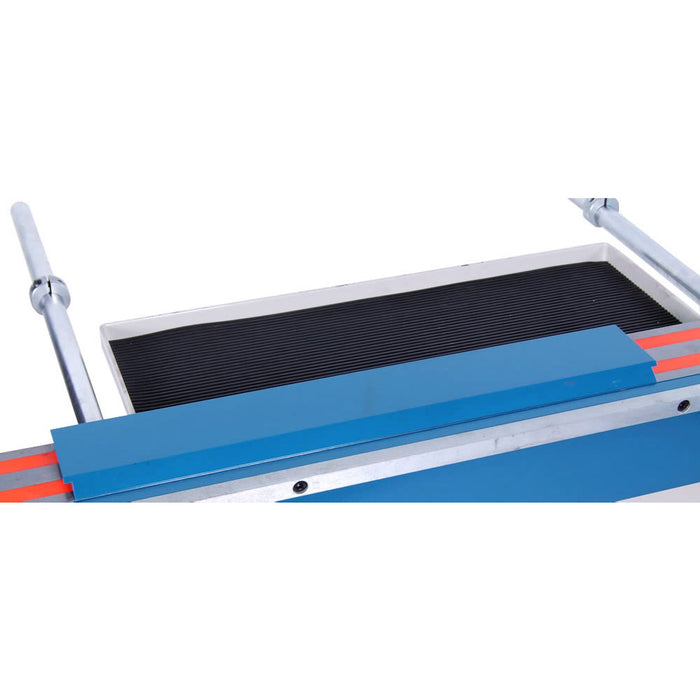

  • You can set up the mild steel clamping bar with straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications.
  • Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses.
  • You can remove the bottom leaf's bending extension for the tightest bend dimension between bends of .625”.
  • Comes with product supports and adjustable back gauges for production runs.
  • Typically kept in stock for quick shipments.
What's in The Box
  • BB-4816M - Magnetic Sheet Metal Brake
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BB-4816M
Power 220V / 1-phase
Duty Cycle 30%
Box Depth Unlimited
Clamping Force 6 ton
Bend Angle 0 – 180°
Max. Clamping Bar Lift Unlimited
Length 48”
Max. Capacity with Extension 18ga. (1.21mm) mild steel / 21ga. (0.83mm) stainless steel
Max. Capacity without Extension 16ga. (1.51mm) mild steel / 20ga. (0.91mm) stainless steel
Thermal Cut-Out 158°F (70°C)
Special Notes Capacities can change depending on set up leaf extension. Rule of thumb for mild steel, 16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.
Things to Know Before Purchase To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty. Questions on this please call Baileigh Industrial 920-684-4990
Dimensions (Inches) 57x45x15
Weight 500 lbs
